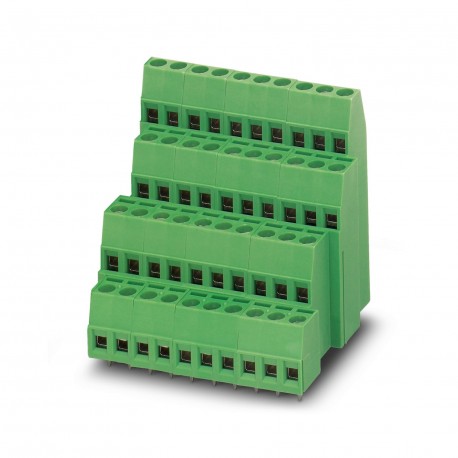

PHOENIX CONTACT MK4DS1,5/14-5,08 BCD BG BD: NZ MK4DS1,5/14-5,08 BCD BG BD: NZ 5604719 PHOENIX CONTACT PCB terminal block, nominal current: 15 A, nom. volta.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

MK4DS1,5/14-5,08 BCD BG BD: NZ 5604719 PHOENIX CONTACT PCB terminal block, nominal current: 15 A, nom. volta..

MK4DS1,5/14-5,08 BCD BG BD: NZ

5604719

PHOENIX CONTACT

25 Pcs.

PCB terminal block, nominal current: 15 A, nom. voltage: 400 V, pitch: 5.08 mm, number of positions: 14, connection method: Screw connection with tension sleeve, mounting: Wave soldering, conductor/PCB connection direction: 0 °, color: Pebble gray Terminal block for printed circuit board, nominal current: 15 A, dimensioning voltage (III/2): 400 V, nominal section: 1.5 mm², number of potentials: 56, number of rows: 4, number of poles per row: 14, family of articles: MK4DS 1.5/.. - BCD, pitch: 5.08 mm, connection type: Screw connection with traction capsule, screw clamping form: L Longitudinal slot, mounting: Wave soldering, conductor/printed circuit board connection direction: 0 °, color: pebble grey, Pin arrangement: Linear pin arrangement, Pin length [P]: 3.5 mm, number of solder pins per potential: 1, Packing Type: Boxed Packed

Connectors > Printed circuit board terminal
PCB Connectors (PCC)

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

PCB terminal block, nominal current: 15 A, nom. voltage: 400 V, pitch: 5.08 mm, number of positions: 14, connection method: Screw connection with tension sleeve, mounting: Wave soldering, conductor/PCB connection direction: 0 °, color: Pebble gray

Key Commercial Data

Orderkey5604719
Packing unit1
GTIN4046356767378
Custom tariff number85369010

Item properties

Brief article descriptionPCB terminal block
Range of articlesMK4DS 1,5
Pitch5.08 mm
Number of positions14
Connection methodScrew connection with tension sleeve
Screw threadM3
Mounting typeWave soldering
Pin layoutLinear pinning
Number of levels4
Number of connections56
Number of potentials56

Electrical parameters

Rated current15 A
Rated insulation voltage (III/2)400 V
Rated surge voltage (III/2)4 kV

Connection capacity

Conductor cross section solid0.14 mm² ... 2.5 mm²
Conductor cross section flexible0.14 mm² ... 1.5 mm²
Conductor cross section AWG / kcmil26 ... 14
Conductor cross section flexible, with ferrule without plastic sleeve0.25 mm² ... 1.5 mm²
Conductor cross section, flexible, with ferrule, with plastic sleeve0.25 mm² ... 1.5 mm²
2 conductors with same cross section, solid0.14 mm² ... 1 mm²
2 conductors with same cross section, flexible0.14 mm² ... 0.75 mm²
2 conductors with same cross section, stranded, ferrules without plastic sleeve0.25 mm² ... 0.5 mm²
2 conductors with same cross section, stranded, with TWIN ferrules with plastic sleeve0.5 mm² ... 0.5 mm²
Stripping length7 mm
Torque0.5 Nm ... 0.6 Nm

Material data - contact

NoteWEEE/RoHS-compliant, free of whiskers according to IEC 60068-2-82/JEDEC JESD 201
Contact materialCu alloy
Surface characteristicshot-dip tin-plated
Metal surface terminal point (top layer)Tin (5 - 7 µm Sn)
Metal surface soldering area (top layer)Tin (5 - 7 µm Sn)

Material data - housing

Insulating material groupI

Dimensions for the product

Dimensional drawing
Length [ l ]42.9 mm
Width [ w ]88.55 mm
Height [ h ]51.5 mm
Pitch5.08 mm
Height (without solder pin)48 mm
Solder pin [P]3.5 mm
Pin dimensions0.9 x 0.9 mm
Dimension a66.04 mm

Dimensions for PCB design

Hole diameter1.3 mm

Packaging information

Pieces per package25
Denomination packing unitsPcs.

Electrical tests

Rated current15 A
Rated insulation voltage (III/2)400 V
Rated surge voltage (III/2)4 kV

Air clearances and creepage distances

Rated insulation voltage (III/3)250 V
Rated insulation voltage (III/2)400 V
Rated insulation voltage (II/2)630 V
Rated surge voltage (III/3)4 kV
Rated surge voltage (III/2)4 kV
Rated surge voltage (II/2)4 kV

Standards and Regulations

Connection in acc. with standardEN-VDE

Environmental Product Compliance

REACh SVHC
Lead 7439-92-1
China RoHSEnvironmentally Friendly Use Period = 50
For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration”

Classifications

eCl@ss

eCl@ss 4.027141109
eCl@ss 4.127141109
eCl@ss 5.027141190
eCl@ss 5.127261100
eCl@ss 6.027261100
eCl@ss 7.027440401
eCl@ss 8.027440401
eCl@ss 9.027440401

ETIM

ETIM 3.0EC001121
ETIM 4.0EC002643
ETIM 5.0EC002643
ETIM 6.0EC002643
ETIM 7.0EC002643

UNSPSC

UNSPSC 6.0130211801
UNSPSC 7.090139121432
UNSPSC 1139121432
UNSPSC 12.0139121432
UNSPSC 13.239121432
