REL-MR-12DC/21-21

2961257

PHOENIX CONTACT

10 Pcs.

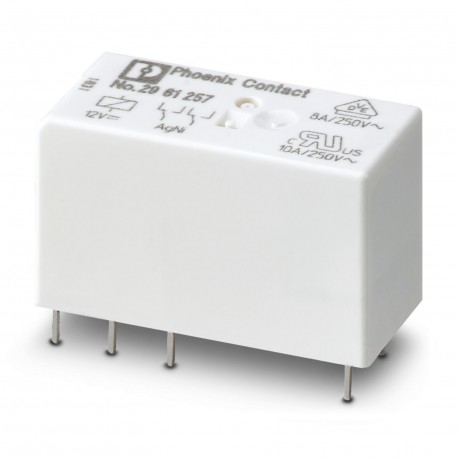

Single relay Plug-in miniature power relay, with power contact, 2 switched contacts, input voltage 12 V DC Plug-in miniature power relay, with power contact, 2 changeover contacts, 12 V DC input voltage

Automation > Switching relay
Industrial Relays

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

Key Commercial Data

Orderkey2961257
Packing unit10 pc
Minimum order quantity10 pc
Catalog pagePage 304 (C-5-2017)
GTIN4017918163525
Weight per Piece (excluding packing)15.430 g
Custom tariff number85364190
Country of originAT (Austria)

Dimensions

Width12.7 mm
Height29 mm
Depth15.7 mm

Ambient conditions

Ambient temperature (operation)-40 °C ... 85 °C
Ambient temperature (storage/transport)-40 °C ... 85 °C

Coil side

Nominal input voltage UN12 V DC
Input voltage range in reference to UNsee diagram
Typical input current at UN33 mA
Typical response time7 ms
Typical release time3 ms
Coil resistance360 Ω ±10 % (at 20 °C)
Power dissipation for nominal condition0.4 W

Contact side

Contact type2 PDT
Type of switch contactSingle contact
Contact materialAgNi
Maximum switching voltage250 V AC/DC
Minimum switching voltage5 V (at 10 mA)
Min. switching current10 mA (At 5 V)
Maximum inrush current25 A (20 ms)
Limiting continuous current8 A
Interrupting rating (ohmic load) max.190 W (at 24 V DC)
85 W (at 48 V DC)
60 W (at 60 V DC)
44 W (at 110 V DC)
60 W (at 220 V DC)
2000 VA (for 250 V AC)
Switching capacity2 A (at 24 V, DC13)
0.2 A (at 250 V, DC13)
3 A (at 24 V, AC15)
3 A (at 120 V, AC15)
3 A (at 250 V, AC15)
Motor load according to UL 5081/4 HP, 120 V AC
1/2 HP, 240 V AC

General

Test voltage relay winding/relay contact5 kV AC (50 Hz, 1 min.)
Test voltage relay contact/relay contact2.5 kV AC (50 Hz, 1 min.)
Operating mode100% operating factor
Degree of protectionRT III (wash-proof)
Mechanical service life3x 107cycles
Service life, electricalsee diagram
Mounting positionany
Assembly instructionsCan be aligned without spacing (> 70 °C ≥ 2.5 mm)
Net weight (SAP)15.43 g

Standards and Regulations

Connection in acc. with standardCUL
Standards/regulationsIEC 60664
EN 50178
EN 61810-1
InsulationBasic insulation
Degree of pollution3
Overvoltage categoryIII

Environmental Product Compliance

China RoHSEnvironmentally friendly use period: unlimited = EFUP-e
No hazardous substances above threshold values

Classifications


ETIM for 2961257 Relays (EC001437)
Feature Name Feature Value
Type of electric connection (EF003961) Other
Complete with socket (EF003359) No
With detachable clamps (EF003340) No
With LED indication (EF005950) No
Rated control supply voltage DC (EF003980) 7.8 V
Voltage type for actuating (EF008242) DC
Drive, polarization (EF003355) Polarity free
Drive, switching attitude (EF003356) Mono stable
Number of contacts as normally closed contact (EF008255) 0
Number of contacts as normally open contact (EF008256) 0
Number of contacts as change-over contact (EF008257) 2
Type of switch contact (EF003358) Single contact
With forced-guided contacts (EF003357) No
Material of contact insert (EF008521) Other
Material of contact surface (EF004020) Untreated
Nominal current (EF000001) 0.033 A
Degree of protection (IP) (EF005474) Other
Width (EF000008) 12.7 mm
Height (EF000040) 29 mm
Depth (EF000049) 15.7 mm

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
