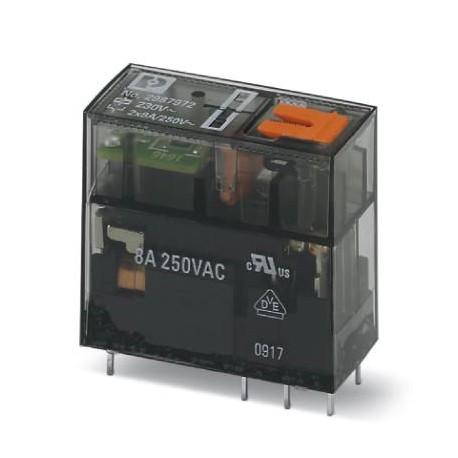

PHOENIX CONTACT REL-MR-230AC/21-21/MS REL-MR-230AC/21-21/MS 2987972 PHOENIX CONTACT Single relay View larger
Images are for illustrative purposes only. Please refer to data sheet for details

REL-MR-230AC/21-21/MS 2987972 PHOENIX CONTACT Single relay

REL-MR-230AC/21-21/MS

2987972

PHOENIX CONTACT

1 Pcs.

Single relay Plug-in miniature relay, with power contact, 2 switched contacts, check button, mechanical display of switching position, status LED, coil voltage 230 V AC

Automation > Switching relay
Industrial Relays

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

Key Commercial Data

Orderkey2987972
Packing unit10 pc
Minimum order quantity10 pc
Catalog pagePage 306 (C-5-2017)
GTIN4046356480987
Weight per Piece (excluding packing)18.010 g
Custom tariff number85364190
Country of originCN (China)

Dimensions

Width12.7 mm
Height29 mm
Depth25 mm

Ambient conditions

Ambient temperature (operation)-40 °C ... 70 °C
Ambient temperature (storage/transport)-40 °C ... 85 °C

Coil side

Nominal input voltage UN230 V AC
Mains frequency50/60 Hz
Typical input current at UN3.5 mA
Typical response time3 ms ... 12 ms (depending on phase relation)
Typical release time range2 ms ... 8 ms (depending on phase relation)
Power dissipation for nominal condition0.81 W

Contact side

Contact type2 PDT
Type of switch contactSingle contact
Contact materialAgNi
Maximum switching voltage250 V AC/DC
Minimum switching voltage12 V (at 10 mA)
Min. switching current10 mA (at 12 V)
Maximum inrush current16 A (20 ms)
Limiting continuous current8 A
Interrupting rating (ohmic load) max.2000 VA (for 250 V AC)
Switching capacity1 A (at 24 V, DC13)
1.5 A (at 24 V, AC15)
1.5 A (at 120 V, AC15)
1.5 A (at 240 V, AC15)
Motor load according to UL 5081/4 HP, 120 V AC (N/O contact)
1/2 HP, 240 V AC (N/O contact)
1/4 HP, 120 V AC (N/C contact)
1/3 HP, 240 V AC (N/C contact)

General

Test voltage relay winding/relay contact5 kV AC (50 Hz, 1 min.)
Test voltage relay contact/relay contact2.5 kV AC (50 Hz, 1 min.)
Mechanical service life5x 106cycles
Service life, electricalsee diagram
Net weight (SAP)18.01 g

Standards and Regulations

Connection in acc. with standardCUL
Standards/regulationsEN 61810-1
VDE 0435-201
EN 50178

Environmental Product Compliance

China RoHSEnvironmentally friendly use period: unlimited = EFUP-e
No hazardous substances above threshold values

Classifications


ETIM for 2987972 Relays (EC001437)
Feature Name Feature Value
Type of electric connection (EF003961) Other
Complete with socket (EF003359) No
With detachable clamps (EF003340) No
With LED indication (EF005950) No
Rated control supply voltage AC 50 Hz (EF003978) 179.4 V
Rated control supply voltage AC 60 Hz (EF003979) 179.4 V
Voltage type for actuating (EF008242) AC
Drive, polarization (EF003355) Polarity free
Drive, switching attitude (EF003356) Mono stable
Number of contacts as normally closed contact (EF008255) 0
Number of contacts as normally open contact (EF008256) 0
Number of contacts as change-over contact (EF008257) 2
Type of switch contact (EF003358) Single contact
With forced-guided contacts (EF003357) No
Material of contact insert (EF008521) Other
Material of contact surface (EF004020) Untreated
Nominal current (EF000001) 0.0035 A
Width (EF000008) 12.7 mm
Height (EF000040) 29 mm
Depth (EF000049) 25 mm
