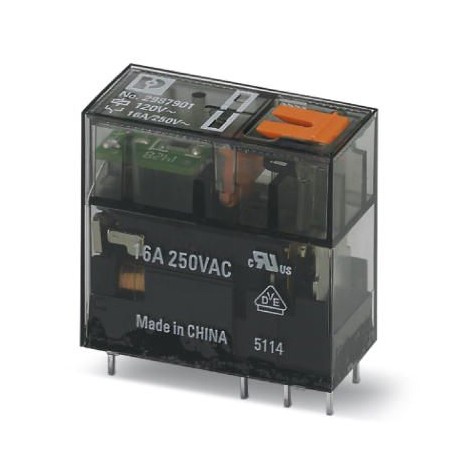

REL-MR-120AC/21HC/MS 2987901 PHOENIX CONTACT Single relay
REL-MR-120AC/21HC/MS
2987901
PHOENIX CONTACT
10 Pcs.
Single relay
Plug-in miniature relay, with power contact, 1 switched contact, check button, mechanical display of switching position, status LED, input voltage 120 V AC
Automation > Switching relay
Industrial Relays
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Key Commercial Data
| Orderkey | 2987901 |
|---|---|
| Packing unit | 10 pc |
| Minimum order quantity | 10 pc |
| Catalog page | Page 306 (C-5-2017) |
| GTIN | 4046356481038 |
| Weight per Piece (excluding packing) | 17.580 g |
| Custom tariff number | 85364900 |
| Country of origin | CN (China) |
Ambient conditions
| Ambient temperature (operation) | -40 °C ... 70 °C |
|---|---|
| Ambient temperature (storage/transport) | -40 °C ... 85 °C |
Coil side
| Nominal input voltage UN | 120 V AC |
|---|---|
| Mains frequency | 50/60 Hz |
| Typical input current at UN | 7 mA |
| Typical response time | 3 ms ... 12 ms (depending on phase relation) |
| Typical release time range | 2 ms ... 8 ms (depending on phase relation) |
| Power dissipation for nominal condition | 0.84 W |
Contact side
| Contact type | 1 PDT |
|---|---|
| Type of switch contact | Single contact |
| Contact material | AgNi |
| Maximum switching voltage | 250 V AC/DC |
| Minimum switching voltage | 12 V (at 10 mA) |
| Min. switching current | 10 mA (at 12 V) |
| Maximum inrush current | 32 A (20 ms) |
| Limiting continuous current | 16 A |
| Interrupting rating (ohmic load) max. | 4000 VA (for 250 V AC) |
| Switching capacity | 2 A (at 24 V, DC13) |
| 3 A (at 24 V, AC15) | |
| 3 A (at 120 V, AC15) | |
| 3 A (at 240 V, AC15) | |
| Motor load according to UL 508 | 1/2 HP, 120 V AC (N/O contact) |
| 1 HP, 240 V AC (N/O contact) | |
| 1/3 HP, 120 V AC (N/C contact) | |
| 1/2 HP, 240 V AC (N/C contact) |
General
| Test voltage relay winding/relay contact | 5 kV AC (50 Hz, 1 min.) |
|---|---|
| Mechanical service life | 5x 106cycles |
| Service life, electrical | see diagram |
| Net weight (SAP) | 17.58 g |
Standards and Regulations
| Connection in acc. with standard | CUL |
|---|---|
| Standards/regulations | EN 61810-1 |
| VDE 0435-201 | |
| EN 50178 |
Environmental Product Compliance
| China RoHS | Environmentally friendly use period: unlimited = EFUP-e |
|---|---|
| No hazardous substances above threshold values |
Classifications
eCl@ss 5.027371601eCl@ss 5.127371600eCl@ss 6.027371600eCl@ss 7.027371601eCl@ss 8.027371601eCl@ss 9.027371601
| Feature Name | Feature Value |
|---|---|
| Type of electric connection (EF003961) | Other |
| Complete with socket (EF003359) | No |
| With detachable clamps (EF003340) | No |
| With LED indication (EF005950) | No |
| Rated control supply voltage AC 50 Hz (EF003978) | 93.6 V |
| Rated control supply voltage AC 60 Hz (EF003979) | 93.6 V |
| Voltage type for actuating (EF008242) | AC |
| Drive, polarization (EF003355) | Polarity free |
| Drive, switching attitude (EF003356) | Mono stable |
| Number of contacts as normally closed contact (EF008255) | 0 |
| Number of contacts as normally open contact (EF008256) | 0 |
| Number of contacts as change-over contact (EF008257) | 1 |
| Type of switch contact (EF003358) | Single contact |
| With forced-guided contacts (EF003357) | No |
| Material of contact insert (EF008521) | Other |
| Material of contact surface (EF004020) | Untreated |
| Nominal current (EF000001) | 0.007 A |
| Width (EF000008) | 12.7 mm |
| Height (EF000040) | 29 mm |
| Depth (EF000049) | 25 mm |
