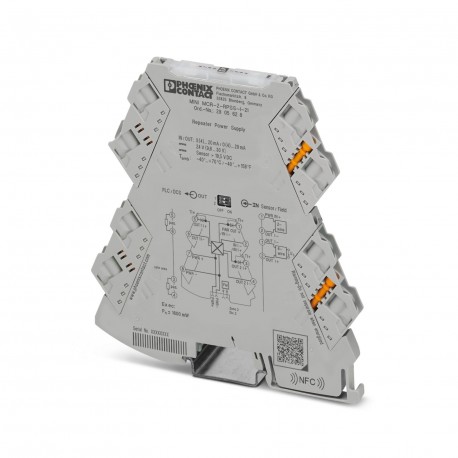

PHOENIX CONTACT MINI MCR-2-RPSS-I-2I MINI MCR-2-RPSS-I-2I 2905628 PHOENIX CONTACT Repeater power supply View larger
Images are for illustrative purposes only. Please refer to data sheet for details

MINI MCR-2-RPSS-I-2I 2905628 PHOENIX CONTACT Repeater power supply

MINI MCR-2-RPSS-I-2I

2905628

PHOENIX CONTACT

1 Pcs.

Repeater power supply 4-way power duplicator with plug-in connection technology. HART transparency, 0(4) mA input signal ... 20 mA, 0(4) mA output signals ... 20 mA. The device can be used in both signal operating and power mirroring modes. Screw connection technology. 4-way power supply doubler with plug-in connection technology. HART-transparent, 0(4) mA ... 20 mA input signal, 0(4) mA ... 20 mA output signals. The device can be used in both signal and power supply doubler modes. Screw connection technology.

Automation > Isolation amplifier
INTERFACE Components (IF)

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲
Technical data
Notes
Utilization restriction
EMC noteEMC: class A product, see manufacturer's declaration in the download area
Product properties
Product typeRepeater power supply
Product familyMINI Analog Pro
No. of channels2
TypeSignal conditioner
ConfigurationDIP switches
Data management status
Article revision02
Insulation characteristics: GB Standard
Overvoltage categoryII
Pollution degree2
Electrical properties
Electrical isolation4-way isolation
Limit frequency (3 dB)> 1 kHz
Signal transmission behaviorIn = Out
Step response (10-90%)< 400 µs
Maximum temperature coefficient0.0075 %/K
Maximum transmission error0.05 % (of final value)
Electrical isolation Input/output/power supply
Rated insulation voltage300 Vrms
Test voltage3 kV AC (50 Hz, 60 s)
InsulationReinforced insulation according to IEC/EN 61010-1
Supply
Nominal supply voltage24 V DC
Supply voltage range9.6 V DC ... 30 V DC (The DIN rail connector (ME 6,2 TBUS-2 1,5/5-ST-3,81 GN, item no. 2869728) can be used to bridge the supply voltage. It can be snapped onto a 35 mm DIN rail in accordance with EN 60715)
Typical current consumption40 mA (For 24 V DC and in signal duplicator mode)
65 mA (For 24 V DC and in power supply duplicator mode)
75 mA (For 12 V DC and in signal duplicator mode)
130 mA (For 12 V DC and in power supply duplicator mode)
Power consumption1.6 W (at IOUT= 20 mA, 500 Ω load)
Input data
Signal: Current
Description of the inputSensor circuit
Number of inputs1
Current input signal0 mA ... 20 mA (Signal duplicator mode)
4 mA ... 20 mA (Power supply and signal duplicator mode)
Input resistance current input90 Ω (+1.6 V)
Transmitter supply voltage> 19.5 V
Output data
Signal: Current
Number of outputs2
Non-load voltage< 20 V
Current output signal0 mA ... 20 mA (Signal duplicator mode)
4 mA ... 20 mA (Power supply and signal duplicator mode)
Max. current output signal25 mA
Load/output load current output≤ 500 Ω (per channel)
Ripple< 20 mVPP(500 Ω)
Connection data
Connection methodScrew connection
Stripping length10 mm
Screw threadM3
Conductor cross section rigid0.2 mm² ... 1.5 mm² (with ferrule)
0.14 mm² ... 2.5 mm² (without ferrule)
Conductor cross section flexible0.14 mm² ... 2.5 mm²
Conductor cross section AWG24 ... 12 (flexible)
Tightening torque0.5 Nm ... 0.6 Nm
Ex data
Ex installation (EPL)Gc
Div. 2
Interfaces
Data communication (bypass)
HART functionYes
Limit frequency (3 dB) 1 kHz
Signaling
Status displayGreen LED (supply voltage)
Dimensions
Width6.2 mm
Height109.81 mm
Depth119.2 mm
Material specifications
Colorgray (RAL 7042)
Housing materialPBT
Fire protection for rail vehicles (DIN EN 45545-2) R22HL 1 - HL 2
Fire protection for rail vehicles (DIN EN 45545-2) R23HL 1 - HL 2
Fire protection for rail vehicles (DIN EN 45545-2) R24HL 1 - HL 2
Environmental and real-life conditions
Ambient conditions
Degree of protectionIP20 (not assessed by UL)
Ambient temperature (operation)-40 °C ... 70 °C
Ambient temperature (storage/transport)-40 °C ... 85 °C
Altitude≤ 2000 m
Permissible humidity (operation)5 % ... 95 % (non-condensing)
Approvals
CE
CertificateCE-compliant
ATEX
Identification II 3 G Ex ec ic IIC T4 Gc
CertificateBVS 19 ATEX E 047 X
UKCA Ex (UKEX)
Identification II 3 G Ex ec ic IIC T4 Gc
CertificatePxCIF21UKEX2902000X
IECEx
IdentificationEx ec ic IIC T4 Gc
CertificateIECEx BVS 19.0041X
CCC / China-Ex
IdentificationEx nA ic IIC T4 Gc
UL, USA/Canada
IdentificationUL 508 Listed
Class I, Div. 2, Groups A, B, C, D T5
Class I, Zone 2, Group IIC T5
Shipbuilding approval
CertificateDNV GL TAA000021E Rev. 1
EAC Ex
Identification 2Ex ec ic IIC T4 Gc
CertificateBY/112 02.01 TP012 103.01 00081
DNV GL data
TemperatureB
HumidityB
VibrationA
EMCA
EnclosureRequired protection according to the Rules shall be provided upon installation on board
EMC data
Electromagnetic compatibilityConformance with EMC directive
Noise immunityEN 61000-6-2
NoteWhen being exposed to interference, there may be minimal deviations.
Noise emissionEN 61000-6-4
Electrostatic discharge
Standards/regulationsEN 61000-4-2
Electrostatic discharge
CommentsSafety measures must be taken to prevent electrostatic discharge.
Electromagnetic HF field
DesignationElectromagnetic RF field
Standards/regulationsEN 61000-4-3
Fast transients (burst)
DesignationFast transients (burst)
Standards/regulationsEN 61000-4-4
Surge current load (surge)
Standards/regulationsEN 61000-4-5
Conducted interference
DesignationConducted interferences
Standards/regulationsEN 61000-4-6
Standards and regulations
Electrical isolation4-way isolation
GB Standard
Standards/regulationsGB 3836.1
GB 3836.4
GB 3836.8
Mounting
Mounting typeDIN rail mounting
Assembly noteThe DIN rail connector can be used for bridging the supply voltage. It can be snapped onto a 35 mm EN 60715 DIN rail.
Mounting positionany

ETIM for 2905628 Sensors (EC002653)
Feature Name Feature Value
Type of power supply (EF001469) Other
Rated supply voltage DC (EF007078) 9.6 V
Number of input ranges -60 mV ... +60 mV (EF006927) 0
Number of input ranges -100 mV ... +100 mV (EF006912) 0
Number of input ranges -300 mV ... +300 mV (EF006920) 0
Number of input ranges -500 mV ... +500 mV (EF006926) 0
Number of input ranges -1 V ... +1 V (EF006906) 0
Number of input ranges -2 V ... +2 V (EF006913) 0
Number of input ranges -2.5 V ... +2.5 V (EF006915) 0
Number of input ranges -5 V ... +5 V (EF006923) 0
Number of input ranges -10 V ... +10 V (EF006909) 0
Number of input ranges -20 V ... +20 V (EF006917) 0
Number of input ranges 0 mV ... 60 mV (EF006905) 0
Number of input ranges 0 mV ... 100 mV (EF006893) 0
Number of input ranges 0 mV ... 200 mV (EF006898) 0
Number of input ranges 0 mV ... 300 mV (EF006901) 0
Number of input ranges 0 mV ... 500 mV (EF006904) 0
Number of input ranges 0 V ... 1 V (EF006890) 0
Number of input ranges 0 V ... 2 V (EF006894) 0
Number of input ranges 0 V ... 2.5 V (EF006895) 0
Number of input ranges 0 V ... 5 V (EF006903) 0
Number of input ranges 0 V ... 10 V (EF006892) 0
Number of input ranges 0 V ... 20 V (EF006897) 0
Number of input ranges 0 V ... 24 V (EF006899) 0
Number of input ranges 0 V ... 30 V (EF006900) 0
Number of input ranges 1 V ... 5 V (EF006907) 0
Number of input ranges 2 V ... 10 V (EF006914) 0
Number of input ranges +5 V ... -5 V (EF006889) 0
Number of input ranges +10 V ... -10 V (EF006888) 0
Number of input ranges 5 V ... 0 V (EF006924) 0
Number of input ranges 5 V ... 1 V (EF006925) 0
Number of input ranges 10 V ... 0 V (EF006910) 0
Number of input ranges 10 V ... 2 V (EF006911) 0
Number of input ranges 0 mA ... 5 mA (EF006902) 0
Number of input ranges 0 mA ... 10 mA (EF006891) 0
Number of input ranges 0 mA ... 20 mA (EF006896) 1
Number of input ranges 4 mA ... 20 mA (EF006921) 1
Number of input ranges -5 mA ... +5 mA (EF006922) 0
Number of input ranges -10 mA ... +10 mA (EF006908) 0
Number of input ranges -20 mA ... +20 mA (EF006916) 0
Number of input ranges 20 mA ... 0 mA (EF006918) 0
Number of input ranges 20 mA ... 4 mA (EF006919) 0
Number of output ranges -60 mV ... +60 mV (EF006880) 0
Number of output ranges -100 mV ... +100 mV (EF006865) 0
Number of output ranges -300 mV ... +300 mV (EF006873) 0
Number of output ranges -500 mV ... +500 mV (EF006879) 0
Number of output ranges -1 V ... +1 V (EF006859) 0
Number of output ranges -2 V ... +2 V (EF006866) 0
Number of output ranges -2.5 V ... +2.5 V (EF006868) 0
Number of output ranges -5 V ... +5 V (EF006876) 0
Number of output ranges -10 V ... +10 V (EF006862) 0
Number of output ranges -20 V ... +20 V (EF006870) 0
Number of output ranges 0 mV ... 60 mV (EF006858) 0
Number of output ranges 0 mV ... 100 mV (EF006846) 0
Number of output ranges 0 mV ... 200 mV (EF006851) 0
Number of output ranges 0 mV ... 300 mV (EF006854) 0
Number of output ranges 0 mV ... 500 mV (EF006857) 0
Number of output ranges 0 V ... 1 V (EF006843) 0
Number of output ranges 0 V ... 2 V (EF006847) 0
Number of output ranges 0 V ... 2.5 V (EF006848) 0
Number of output ranges 0 V ... 5 V (EF006856) 0
Number of output ranges 0 V ... 10 V (EF006845) 0
Number of output ranges 0 V ... 20 V (EF006850) 0
Number of output ranges 0 V ... 24 V (EF006852) 0
Number of output ranges 0 V ... 30 V (EF006853) 0
Number of output ranges 1 V ... 5 V (EF006860) 0
Number of output ranges 2 V ... 10 V (EF006867) 0
Number of output ranges +5 V ... -5 V (EF006842) 0
Number of output ranges +10 V ... -10 V (EF006841) 0
Number of output ranges 5 V ... 0 V (EF006877) 0
Number of output ranges 5 V ... 1 V (EF006878) 0
Number of output ranges 10 V ... 0 V (EF006863) 0
Number of output ranges 10 V ... 2 V (EF006864) 0
Number of output ranges 0 mA ... 5 mA (EF006855) 0
Number of output ranges 0 mA ... 10 mA (EF006844) 0
Number of output ranges 0 mA ... 20 mA (EF006849) 1
Number of output ranges 4 mA ... 20 mA (EF006874) 1
Number of output ranges -5 mA ... +5 mA (EF006875) 0
Number of output ranges -10 mA ... +10 mA (EF006861) 0
Number of output ranges -20 mA ... +20 mA (EF006869) 0
Number of output ranges 20 mA ... 0 mA (EF006871) 0
Number of output ranges 20 mA ... 4 mA (EF006872) 0
Number of channels (EF000259) 2
Malfunction message output (EF007499) No
Inherently safe according to EN 60947-5-6 NAMUR (EF007112) No
Galvanic separation between inputs (EF007224) No
SIL according to IEC 61508 (EF009889) None
Height (EF000040) 109.81 mm
Width (EF000008) 6.2 mm
Depth (EF000049) 119.2 mm
Power consumption (EF000346) 1.6 W
Load (EF007096) 500 Ohm
Operating temperature (EF002393) -40 °C
Temperature drift (EF007507) 0.0075 %/K
Construction type of device (EF007276) Built-in device
Type of electric connection (EF003961) Screw connection
Mounting method (EF000003) Snap mounting support rail
Degree of protection (IP) (EF005474) IP20
