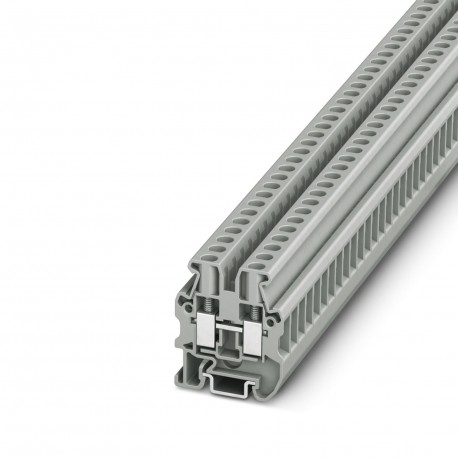

PHOENIX CONTACT MUT 4 MUT 4 3248035 PHOENIX CONTACT Mini feed-through terminal block View larger
Images are for illustrative purposes only. Please refer to data sheet for details

MUT 4 3248035 PHOENIX CONTACT Mini feed-through terminal block

MUT 4

3248035

PHOENIX CONTACT

50 Pcs.

Mini feed-through terminal block Mini-terminal block, nominal voltage: 500 V, nominal current: 32 A, number of connections: 2, number of poles: 1, connection type: Screw connection, 1st floor, Dimensioning cross-section: 4 mm², cross-section: 0.2 mm² - 6 mm², mounting class: NS 15, colour: grey Mini feed-through terminal block, nom. voltage: 500 V, nominal current: 32 A, number of connections: 2, number of positions: 1, connection method: Screw connection, Rated cross section: 4 mm2, cross section: 0.2 mm2 - 6 mm2, mounting type: NS 15, color: gray

Automation > Feed-through terminal block
Modular TBs

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲
Technical data
Product properties
Product typeMiniature terminal block
Number of positions1
Number of connections2
Number of rows1
Potentials1
Data management status
Article revision09
Insulation characteristics
Overvoltage categoryIII
Degree of pollution3
Electrical properties
Rated surge voltage6 kV
Maximum power dissipation for nominal condition1.02 W
Connection data
Number of connections per level2
Nominal cross section4 mm²
Rated cross section AWG10
Screw threadM3
Tightening torque0.6 ... 0.8 Nm
Stripping length9 mm
Internal cylindrical gageA3
B3
Connection in acc. with standardIEC 60947-7-1
Conductor cross section rigid0.2 mm² ... 6 mm²
Cross section AWG24 ... 10 (converted acc. to IEC)
Conductor cross section flexible0.2 mm² ... 6 mm²
Conductor cross section, flexible [AWG]24 ... 10 (converted acc. to IEC)
Conductor cross-section flexible (ferrule without plastic sleeve)0.25 mm² ... 4 mm²
Flexible conductor cross section (ferrule with plastic sleeve)0.25 mm² ... 4 mm²
2 conductors with same cross section, solid0.2 mm² ... 1.5 mm²
2 conductors with same cross section, flexible0.2 mm² ... 1.5 mm²
2 conductors with same cross section, flexible, with ferrule without plastic sleeve0.25 mm² ... 1.5 mm²
2 conductors with the same cross section, flexible, with TWIN ferrule with plastic sleeve0.5 mm² ... 2.5 mm²
Nominal current32 A (with 4 mm² conductor cross section)
Maximum load current38 A (with 6 mm² conductor cross section)
Nominal voltage500 V
Nominal cross section4 mm²
Ex data
Rated data (ATEX/IECEx)
Identification II 2 GD  Ex eb IIC Gb
Operating temperature range-60 °C ... 110 °C
Ex-certified accessories3248033 D-MUT 2,5/4
1205053 SZS 0,6X3,5
3022263 CLIPFIX 15
List of bridgesPlug-in bridge / FBS 2-6 / 3030336
Plug-in bridge / FBS 3-6 / 3030242
Plug-in bridge / FBS 4-6 / 3030255
Plug-in bridge / FBS 5-6 / 3030349
Plug-in bridge / FBS 10-6 / 3030271
Plug-in bridge / FBS 20-6 / 3030365
Bridge data24.5 A / 4 mm²
Ex temperature increase40 K (27.88 A / 4 mm²)
Rated voltage352 V
for bridging with bridge352 V
- At bridging between non-adjacent terminal blocks220 V
- At bridging between non-adjacent terminal blocks via PE terminal block220 V
- At cut-to-length bridging with cover220 V
Rated insulation voltage320 V
output(Permanent)
Ex level General
Rated current27.5 A
Maximum load current32.5 A
Contact resistance0.25 mΩ
Ex connection data General
Torque range0.6 Nm ... 0.8 Nm
Nominal cross section4 mm²
Rated cross section AWG12
Connection capacity rigid0.2 mm² ... 6 mm²
Connection capacity AWG24 ... 10
Connection capacity flexible0.2 mm² ... 4 mm²
Connection capacity AWG24 ... 12
2 conductors with same cross section, solid0.2 mm² ... 1.5 mm²
2 conductors with the same cross-section AWG rigid24 ... 16
2 conductors with same cross section, stranded0.2 mm² ... 1.5 mm²
2 conductors with the same cross-section AWG flexible24 ... 16
Dimensions
Width6.2 mm
End cover width2.2 mm
Height29.9 mm
Depth on NS 1534 mm
Material specifications
Colorgray (RAL 7042)
Flammability rating according to UL 94V0
Insulating material groupI
Insulating materialPA
Static insulating material application in cold-60 °C
Relative insulation material temperature index (Elec., UL 746 B)130 °C
Fire protection for rail vehicles (DIN EN 45545-2) R22HL 1 - HL 3
Fire protection for rail vehicles (DIN EN 45545-2) R23HL 1 - HL 3
Fire protection for rail vehicles (DIN EN 45545-2) R24HL 1 - HL 3
Fire protection for rail vehicles (DIN EN 45545-2) R26HL 1 - HL 3
Surface flammability NFPA 130 (ASTM E 162)passed
Specific optical density of smoke NFPA 130 (ASTM E 662)passed
Smoke gas toxicity NFPA 130 (SMP 800C)passed
Electrical tests
Surge voltage test
Test voltage setpoint7.3 kV
ResultTest passed
Temperature-rise test
Requirement temperature-rise testIncrease in temperature ≤ 45 K
ResultTest passed
Short-time withstand current 4 mm²0.48 kA
Short-time withstand current 6 mm²0.72 kA
ResultTest passed
Power-frequency withstand voltage
Test voltage setpoint1.89 kV
ResultTest passed
Mechanical properties
Mechanical data
Open side panelYes
Mechanical tests
Mechanical strength
ResultTest passed
Attachment on the carrier
DIN rail/fixing supportNS 15
ResultTest passed
Test for conductor damage and slackening
Rotation speed9 rpm
Revolutions135
Conductor cross section/weight0.2 mm² / 0.2 kg
4 mm² / 0.9 kg
6 mm² / 1.4 kg
ResultTest passed
Environmental and real-life conditions
Needle-flame test
Time of exposure30 s
ResultTest passed
Oscillation/broadband noise
SpecificationDIN EN 50155 (VDE 0115-200):2008-03
SpectrumService life test category 1, class B, body mounted
Frequencyf1= 5 Hz to f2= 250 Hz
ASD level6.12 (m/s²)²/Hz
Acceleration3.12g
Test duration per axis5 h
Test directionsX-, Y- and Z-axis
ResultTest passed
Shocks
SpecificationDIN EN 50155 (VDE 0115-200):2008-03
Pulse shapeSemi-sinusoidal
Acceleration30g
Shock duration18 ms
Number of shocks per direction3
Test directionsX-, Y- and Z-axis (pos. and neg.)
ResultTest passed
Ambient conditions
Ambient temperature (operation)-60 °C ... 110 °C (Operating temperature range incl. self-heating; for max. short-term operating temperature, see RTI Elec.)
Ambient temperature (storage/transport)-25 °C ... 60 °C (for a short time, no longer than 24 h, -60°C to +70°C)
Ambient temperature (assembly)-5 °C ... 70 °C
Ambient temperature (actuation)-5 °C ... 70 °C
Permissible humidity (operation)20 % ... 90 %
Permissible humidity (storage/transport)30 % ... 70 %
Standards and regulations
Connection in acc. with standardIEC 60947-7-1
Mounting
Mounting typeNS 15

ETIM for 3248035 Terminal blocks (EC000897)
Feature Name Feature Value
Connectable conductor cross section fine-strand without cable end sleeve (EF007341) 0.2 mm²
Connectable conductor cross section fine-strand with cable end sleeve (EF007339) 0.25 mm²
Connectable conductor cross section solid-core (EF007337) 0.2 mm²
Connectable conductor cross section multi-wired (EF007343) 0.2 mm²
Rated current In (EF008250) 32 A
Rated voltage (EF000228) 500 V
Type of electrical connection 1 (EF002526) Screw connection
Type of electrical connection 2 (EF002527) Screw connection
Number of clamp positions per level (EF002660) 2
Suitable for conductor material (EF012572) Aluminium/copper
Mounting method (EF000003) DIN rail (top hat rail) 15 mm
Material insulation body (EF007543) Other
Operating temperature (EF002393) -60 °C
Inflammability class of insulation material according to UL94 (EF002521) V0
Width (EF000008) 6.2 mm
Height (EF000040) 29.9 mm
Depth (EF000049) 34 mm
Explosion-tested version 'Ex e' (EF008498) Yes
Closing plate required (EF002525) Yes
Colour (EF000007) Grey
Internally connected stages (EF002661) Yes
