View larger
Images are for illustrative purposes only. Please refer to data sheet for details

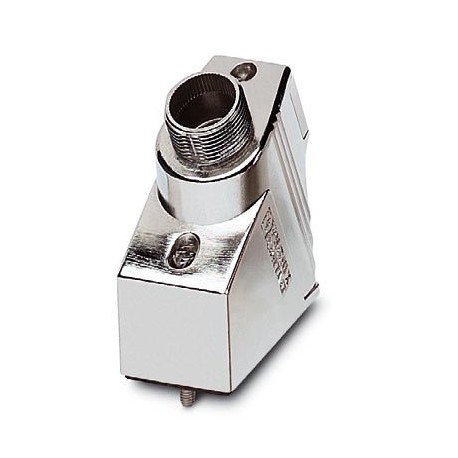

VC-MEMV-T4-Z 1853353 PHOENIX CONTACT Housing
VC-MEMV-T4-Z
1853353
PHOENIX CONTACT
5 Pcs.
Housing
Aerial housing, Article family: VARIOCON, construction: VC4, housing material: Zinc die-casting, color: nickel
Connectors > Housing for rectangular connectors
Field Device Connectors (FDC)
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Key Commercial Data
| Orderkey | 1853353 |
|---|---|
| Packing unit | 5 pc |
| Note | Made to Order (non-returnable) |
| Catalog page | Page 369 (PC-2009) |
| GTIN | 4017918133429 |
| Weight per Piece (excluding packing) | 371.980 g |
| Custom tariff number | 85389099 |
| Country of origin | PL (Poland) |
General
| Size | VC4 |
|---|---|
| Locking type | Screw locking, cylinder head |
| Tightening torque, mounting screw | 1 Nm ±0.5 Nm |
| No. of cable outlets | 1 |
| Cable outlet | Angled |
| Type of the screw connection | Pg21 |
| Housing material | Zinc die-cast, surface bronzed and nickel-plated |
| Seal material | EPDM, conductive |
| Material of locking screw | V2A |
| Flammability rating according to UL 94 | V0 |
Standards and Regulations
| Connection in acc. with standard | CUL |
|---|---|
| Flammability rating according to UL 94 | V0 |
Environmental Product Compliance
| China RoHS | Environmentally friendly use period: unlimited = EFUP-e |
|---|---|
| No hazardous substances above threshold values |
Classifications
eCl@ss 4.027140816eCl@ss 4.127140816eCl@ss 5.027371205eCl@ss 5.127261200eCl@ss 6.027261200eCl@ss 7.027440202eCl@ss 8.027440202eCl@ss 9.027440202
| Feature Name | Feature Value |
|---|---|
| Width (EF000008) | 33 mm |
| Height (EF000040) | 75 mm |
| Depth (EF000049) | 111 mm |
| Housing material (EF001596) | Other |
| Coating housing (EF001601) | Other |
| Position of the shackle (EF008459) | None |
| With cable screw gland (EF000735) | No |
| Mounting method of the cable gland (EF012210) | Other |
| With hinged lid (EF000117) | No |
| With distance piece (EF005072) | No |
| With sealing (EF005610) | Yes |
| Number of conduit inlets (EF000437) | 1 |
| Type of locking (EF000208) | Screw |
| Operating temperature (EF002393) | -40 °C |
| EMC-version (EF001062) | Yes |
| Degree of protection (IP), mounted (EF007466) | IP67 |
