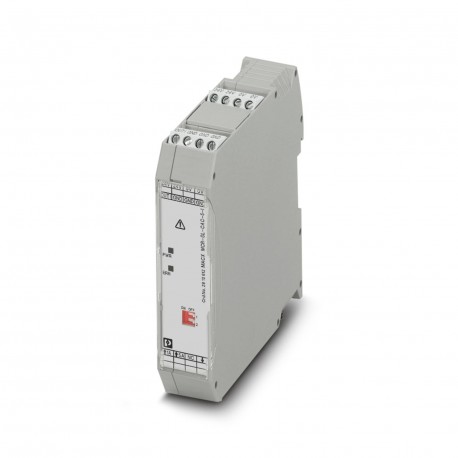

PHOENIX CONTACT MACX MCR-SL-CAC-5-I MACX MCR-SL-CAC- 5-I 2810612 PHOENIX CONTACT Current transducers View larger
Images are for illustrative purposes only. Please refer to data sheet for details

MACX MCR-SL-CAC- 5-I 2810612 PHOENIX CONTACT Current transducers

MACX MCR-SL-CAC-5-I

2810612

PHOENIX CONTACT

1 Pcs.

Current transducers Current converter for 1 A and 5 A AC, output signal 0...20 mA or 4...20 mA, configurable via DIP switch with LED service status signalling

Automation > Current value transformer
INTERFACE Components (IF)

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

Key Commercial Data

Orderkey2810612
Packing unit1 pc
Catalog pagePage 246 (C-5-2017)
GTIN4046356153775
Weight per Piece (excluding packing)172.500 g
Custom tariff number85437090
Country of originDE (Germany)

Note

Utilization restrictionEMC: class A product, see manufacturer's declaration in the download area

Dimensions

Width22.5 mm
Height104 mm
Depth114.5 mm

Ambient conditions

Ambient temperature (operation)-20 °C ... 65 °C (-4 °F...149 °F)
Ambient temperature (storage/transport)-40 °C ... 85 °C (-40 °F ... 185 °F)
Maximum altitude2000 m

Input data

Configurable/programmableVia DIP switches
Input current range0 A ... 5 A
Setting range for min. input current0 A AC ... 1 A (configurable)
Setting range for max. input current0 A AC ... 5 A (configurable)
Overload capacity2 x IN (continuous)
Surge strength20 x IN(1 s)
Nominal frequency fN50 Hz
Frequency measuring range45 Hz ... 65 Hz
Connection methodScrew terminal block

Output data

Output nameCurrent output
Configurable/programmableVia DIP switches
Current output signal0 mA ... 20 mA (configurable)
4 mA ... 20 mA (configurable)
Max. output current25 mA
Load/output load current output< 500 Ω (20 mA)
Ripple< 10 mVPP(for 500 Ω at 20 mA)
Status displayLED red (error), LED green (ready)

Switching output

Output nameNo switching output

Power supply

Nominal supply voltage24 V DC (-20 % ... +25 %)
Supply voltage range19.2 V DC ... 30 V DC
Max. current consumption< 32 mA (at UB=24 V DC, IOUT=20 mA)
Power consumption< 0.9 W (at UB=24 V DC, IOUT=20 mA)

Connection data

Connection methodScrew connection
Conductor cross section solid min.0.2 mm²
Conductor cross section solid max.2.5 mm²
Conductor cross section AWG min.24
Conductor cross section AWG max.14
Conductor cross section flexible min.0.2 mm²
Conductor cross section flexible max.2.5 mm²
Stripping length8 mm
Screw threadM3

General

Maximum transmission error≤ 0.5 % (of nominal range value under nominal conditions)
Maximum temperature coefficient< 0.02 %/K
Temperature coefficient, typical< 0.015 %/K
Step response (10-90%)≤ 300 ms
typ. 200 ms
Overvoltage categoryII
Degree of pollution2
Test voltage input/output4 kV (50 Hz, 1 min.)
Test voltage output/power supply1.5 kV (50 Hz, 1 min.)
Electromagnetic compatibilityConformance with EMC directive
Noise emissionEN 61000-6-4
Noise immunityEN 61000-6-2 When being exposed to interference, there may be minimal deviations.
Colorgray
Housing materialPolyamide PA non-reinforced
Mounting positionany
ConformanceCE-compliant
ATEX II 3 G Ex nA IIC T4 Gc X
UL, USA/CanadaUL 508 Recognized

Standards and Regulations

Electromagnetic compatibilityConformance with EMC directive
Noise emissionEN 61000-6-4
Connection in acc. with standardCUL
Standards/regulationsEN 61000-4-2
EN 61000-4-3
EN 61000-4-4
CommentsCriterion B
Standards/regulationsEN 61000-4-5
EN 61000-4-6
ConformanceCE-compliant
ATEX II 3 G Ex nA IIC T4 Gc X
UL, USA/CanadaUL 508 Recognized

Environmental Product Compliance

China RoHSEnvironmentally Friendly Use Period = 50
For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration”

Classifications


ETIM for 2810612 Sensors (EC002475)
Feature Name Feature Value
Initial value measuring range current (EF008198) 0 A
End value measuring range current (EF008266) 1 A
Frequency rated current (EF005737) 50 Hz
Type of analogy output (EF003958) 4-20 mA
Integrated configuration function (EF003064) No
With switching output (EF005225) No
