View larger
Images are for illustrative purposes only. Please refer to data sheet for details

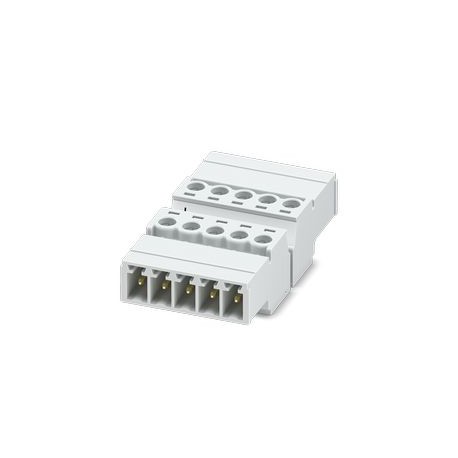

ME-TBUS-A IMC1,5-2 1351982 PHOENIX CONTACT Bus connector adapter for DIN rail (2 poles) to connect MACX equi..
ME-TBUS-A IMC1,5-2
1351982
PHOENIX CONTACT
1 Pcs.
Bus connector adapter for DIN rail (2 poles) to connect MACX equipment MCR-EX-AP... to the MACX MCR-PTB(-SP) power module on the left side with the DIN rail bus connector ME 17.5 TBUS 1.5/5-ST-3.81 GY for supply voltage jumping.
Rail bus connector adapter (2-pole) for connecting MACX MCR-EX-AP devices... to the MACX MCR-PTB(-SP) power module on the left side with the rail bus connector ME 17.5 TBUS 1.5/5-ST-3.81 GY for bridging the supply voltage.
DIN rail connector adapter (2-pos.) for connection of MACX MCR-EX-AP... devices on the left side to the MACX MCR-PTB(-SP) power module with DIN rail connector ME 17,5 TBUS 1,5/5-ST-3,81 GY for bridging the supply voltage.
Connectors > Printed circuit board connector
INTERFACE Components (IF)
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Technical data
Product properties
| Product type | DIN rail connector |
Electrical properties
| Nominal voltage UN | 160 V |
| Nominal current IN | 8 A |
Connection data
| Cross section AWG | (converted acc. to IEC) |
| Connection method | Plug |
| Number of positions | 2 |
Dimensions
| Width | 19.84 mm |
| Height | 11.1 mm |
| Depth | 32.2 mm |
Material specifications
| Flammability rating according to UL 94 | V0 |
Environmental and real-life conditions
| Ambient conditions | |
| Ambient temperature (operation) | -40 °C ... 100 °C |
| Ambient temperature (storage/transport) | -40 °C ... 70 °C |
| Feature Name | Feature Value |
|---|---|
| Over voltage category (EF006785) | III |
| Pollution degree (EF006786) | 2 |
