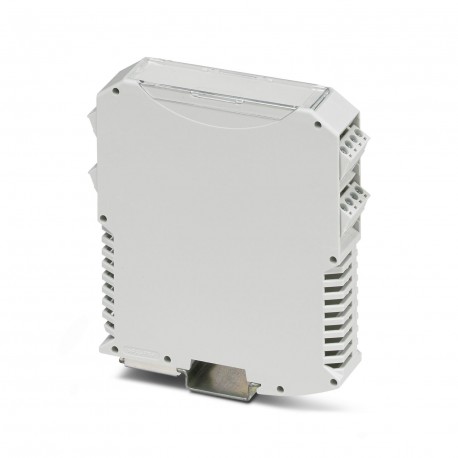

ME MAX 22,5 2-2 DEV-KIT KMGY 2202524 PHOENIX CONTACT Electronic housing
ME MAX 22,5 2-2 DEV-KIT KMGY
2202524
PHOENIX CONTACT
1 Pcs.
Electronic housing
DEV-KIT ME MAX: includes 1 ME MAX 22.5 2-2 housing and plug-in connection technology (4x MSTBO with 4x MSTBT), supplied in individual pieces
DEV-KIT ME MAX: contains 1 x ME MAX 22,5 2-2 housing and pluggable connection technology (4x MSTBO with 4x MSTBT), supplied in individual parts
Automation > Electronic enclosure
Housing (HS)
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Technical data
Notes
| Assembly note | Refer to the data sheet for the range in the download area. |
| Recommendation | Material of contact pads for bus connector, galvanic gold (hard gold) |
Product properties
| Product type | Stackable housing set |
| Housing type | DIN rail housing |
| Housing series | ME-MAX |
| Product family | ME MAX.. 2-2 |
| Max. number of positions | 16 (pitch: 5 mm) |
| Number of rows | 2 |
| Type | Set consisting of upper housing part and connection technology |
| Ventilation openings present | yes |
| Data management status | |
| Article revision | 04 |
Dimensions
| Dimensional drawing |  |
| Width | 22.6 mm |
| Height | 99 mm |
| Depth | 113.65 mm |
| Depth from top edge of DIN rail | 107 mm |
| PCB design | |
| PCB thickness | 1.4 mm ... 1.8 mm |
Material specifications
| Color (Housing) | light gray (RAL 7035) |
| Flammability rating according to UL 94 | V0 |
| CTI according to IEC 60112 | 600 |
| Housing material | Polyamide |
| Surface characteristics | untreated |
Environmental and real-life conditions
| Ambient conditions | |
| Max. IP code to attain | IP20 |
| Ambient temperature (operation) | -40 °C ... 105 °C (depending on power dissipation) |
PCB data
| Type of PCB mount | Latching |
| Thickness of the PCB | 1.4 mm ... 1.8 mm |
Mounting
| Mounting type | DIN rail mounting |
| Feature Name | Feature Value |
|---|---|
| Material (EF002169) | Other |
| Colour (EF000007) | Grey |
