View larger
Images are for illustrative purposes only. Please refer to data sheet for details
ME-IO 18,8 MC 8U TRANS 2202627 PHOENIX CONTACT Accessories
ME-IO 18,8 MC 8U TRANS
2202627
PHOENIX CONTACT
5 Pcs.
Accessories

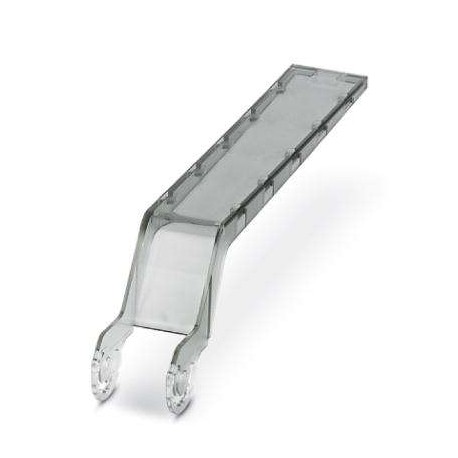

Rail box, 8U, Marking cover, width: 18.8 mm, height: 110.95 mm, color: transparent
Automation > Extruded profile modular housing
Housing (HS)
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Key Commercial Data
| Orderkey | 2202627 |
|---|---|
| Packing unit | 5 pc |
| Minimum order quantity | 5 pc |
| GTIN | 4055626210902 |
| Weight per Piece (excluding packing) | 9.660 g |
| Custom tariff number | 85389099 |
| Country of origin | CN (China) |
Item properties
| Brief article description | Accessories |
|---|---|
| Type | ME-IO 18,8 MC 8U TRANS |
| Order No. | 2202627 |
| Housing type | Component housing |
| Type | 8U |
| Mounting type | Snap in |
Material data
| Color (RAL) | transparent |
|---|---|
| Flammability rating according to UL 94 | V0 |
| Housing material | Polyamide |
Environmental Product Compliance
| China RoHS | Environmentally friendly use period: unlimited = EFUP-e |
|---|---|
| No hazardous substances above threshold values |
Classifications
eCl@ss 4.027180401eCl@ss 4.127180401eCl@ss 5.027180506eCl@ss 5.127180500eCl@ss 6.027180800eCl@ss 7.027182702eCl@ss 8.027182702eCl@ss 9.027182702
| Feature Name | Feature Value |
|---|---|
| Type of enclosure (EF003086) | Open |
| Housing connectable (EF003088) | No |
| Suitable for rail mounting (EF003972) | No |
| Wall mounting possible (EF003973) | No |
| With integrated PCB-mounting connection system (EF003087) | No |
| Material (EF002169) | Other |
| Surface finishing (EF006569) | Other |
| Colour (EF000007) | Other |
