View larger
Images are for illustrative purposes only. Please refer to data sheet for details

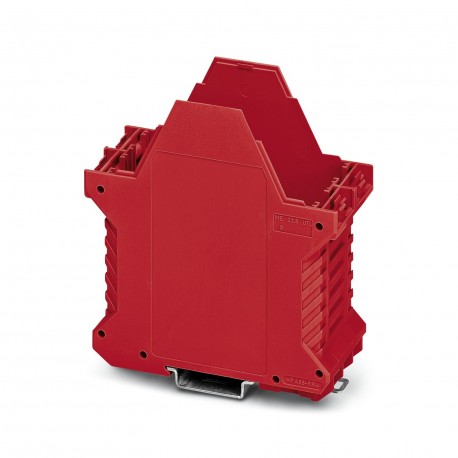

ME 45 UTG RD 2709477 PHOENIX CONTACT Mounting base housing
ME 45 UTG RD
2709477
PHOENIX CONTACT
10 Pcs.
Mounting base housing
Rail box, Lower housing with metal pin, high design, no vent slits, width: 45.2 mm, height: 99 mm, depth: 107.3 mm, color: red (3001), cross bridge: without bus connector, number of poles cross connector: not relevant
DIN rail control unit, Lower part of the housing with metal locking foot, slim design, without ventilation slot, width: 45.2 mm, height: 99 mm, depth: 107.3 mm, colour: red (similar to RAL 3001), cross connection: without bus connector, number of poles cross connector: not applicable
Automation > Extruded profile modular housing
Housing (HS)
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Key Commercial Data
| Orderkey | 2709477 |
|---|---|
| Packing unit | 10 pc |
| Minimum order quantity | 10 pc |
| GTIN | 4017918879716 |
| Weight per Piece (excluding packing) | 51.290 g |
| Custom tariff number | 85472000 |
| Country of origin | DE (Germany) |
Environmental Product Compliance
| China RoHS | Environmentally friendly use period: unlimited = EFUP-e |
|---|---|
| No hazardous substances above threshold values |
Classifications
eCl@ss 4.027180401eCl@ss 4.127180401eCl@ss 5.027180506eCl@ss 5.127180500eCl@ss 6.027180800eCl@ss 7.027182702eCl@ss 8.027182702eCl@ss 9.027182702
| Feature Name | Feature Value |
|---|---|
| Type of enclosure (EF003086) | Closed |
| Housing connectable (EF003088) | No |
| Material (EF002169) | Other |
| Surface finishing (EF006569) | Other |
| Colour (EF000007) | Red |
| RAL-number (EF000116) | 3001 |
| Width (EF000008) | 45.2 mm |
| Height (EF000040) | 99 mm |
| Depth (EF000049) | 107.3 mm |
