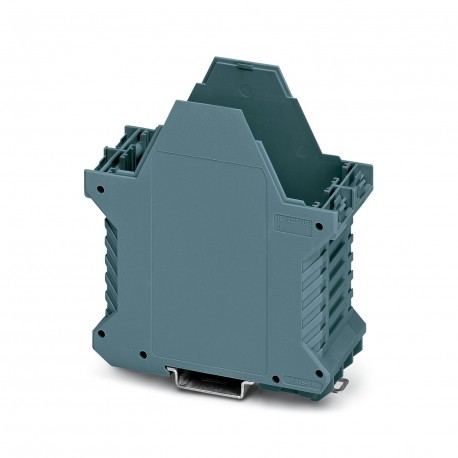

PHOENIX CONTACT ME 45 UTG BUGY ME 45 UTG BUGY 2199278 PHOENIX CONTACT Mounting base housing View larger
Images are for illustrative purposes only. Please refer to data sheet for details

ME 45 UTG BUGY 2199278 PHOENIX CONTACT Mounting base housing

ME 45 UTG BUGY

2199278

PHOENIX CONTACT

100 Pcs.

Mounting base housing Rail box, Bottom of housing with metal pin, high design, no vent slits, width: 45.2 mm, height: 99 mm, depth: 107.3 mm, color: bluish gray (7031), cross bridge: without bus connector, number of poles cross connector: not relevant DIN rail housing, Lower housing part with metal foot catch, tall design, without vents, width: 45.2 mm, height: 99 mm, depth: 107.3 mm, color: blue grey (similar RAL 7031), cross connection: without bus connector, number of positions cross connector: not relevant

Automation > Extruded profile modular housing
Housing (HS)

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲
Technical data
Notes
Assembly noteRefer to the data sheet for the range in the download area.
Product properties
Product typeEnclosure bottom part
Housing typeDIN rail housing
Housing seriesME
TypeLower housing parts without vents, housing cover necessary to complete the module
Max. number of positions0)
TypeLower housing part with metal foot catch, tall design
Ventilation openings presentno
Data management status
Article revision01
Dimensions
Dimensional drawingcgqcclvela.jpg
Width45.2 mm
Height99 mm
Depth107.3 mm
Depth from top edge of DIN rail100.7 mm
Depth from top edge of DIN rail to support point on upper part68.5 mm
PCB design
PCB thickness1.4 mm ... 1.8 mm
Material specifications
Colorblue grey (7031)
Color (Housing)blue grey (RAL 7031)
Flammability rating according to UL 94V0
CTI according to IEC 60112600
Housing materialPolyamide
Surface characteristicsuntreated
Environmental and real-life conditions
Power dissipation single housing for 20 °C
Ambient temperature20 °C
Reduction factor1
Mounting positionvertical
Power dissipation7.6 W
Power dissipation single housing for 30 °C
Ambient temperature30 °C
Reduction factor0.91
Mounting positionvertical
Power dissipation6.9 W
Power dissipation single housing for 40 °C
Ambient temperature40 °C
Reduction factor0.81
Mounting positionvertical
Power dissipation6.1 W
Power dissipation single housing for 50 °C
Ambient temperature50 °C
Reduction factor0.7
Mounting positionvertical
Power dissipation5.3 W
Power dissipation single housing for 60 °C
Ambient temperature60 °C
Reduction factor0.57
Mounting positionvertical
Power dissipation4.3 W
Power dissipation single housing for 70 °C
Ambient temperature70 °C
Reduction factor0.49
Mounting positionvertical
Power dissipation3.7 W
Vibration test
SpecificationIEC 60068-2-6:2007-12
Frequency10 - 150 - 10 Hz
Sweep speed1 octave/min
Amplitude0.15 mm (10 Hz ... 58.1 Hz)
Acceleration2g (58.1 Hz ... 150 Hz)
Test duration per axis2.5 h
Test directionsX-, Y- and Z-axis
Glow-wire test
SpecificationIEC 60695-2-11:2014-02
Temperature850 °C
Time of exposure30 s
Thermal stability / ball thrust test
SpecificationIEC 60695-10-2:2014-02
Temperature125 °C
Test duration1 h
Force20 N
Mechanical strength / tumbling barrel
SpecificationIEC 60998-1:2002-12
Height of fall50 cm
Frequency10
Shocks
SpecificationIEC 60068-2-27:2008-02
Pulse shapeHalf-sine
Acceleration15g
Shock duration11 ms
Number of shocks per direction3
Test directionsX-, Y- and Z-axis (pos. and neg.)
Degree of protection (IP code)
SpecificationIEC 60529:1989-11 + AMD 1:1999-11 + AMD 2:2013-08
Ambient conditions
Max. IP code to attainIP20
Ambient temperature (operation)-40 °C ... 105 °C (depending on power dissipation)
Ambient temperature (storage/transport)-40 °C ... 55 °C
Ambient temperature (assembly)-5 °C ... 100 °C
Relative humidity (storage/transport)80 %
PCB data
Number of PCB holders2
Type of PCB mountInsertion (optional latching by PCB stop)
Thickness of the PCB1.4 mm ... 1.8 mm
Mounting
Mounting typeDIN rail mounting
Packaging specifications
Type of packagingpacked in cardboard
Outer packaging typeCarton
