View larger
Images are for illustrative purposes only. Please refer to data sheet for details

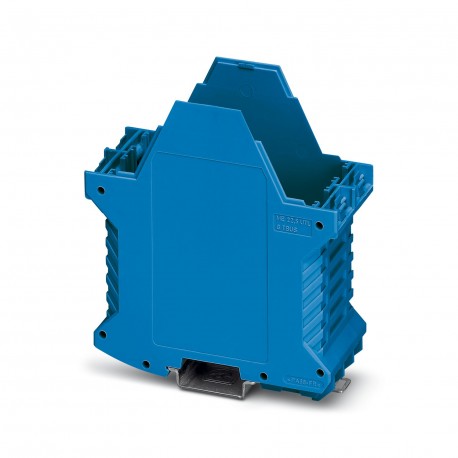

ME 45 UT TBUS BU 2713997 PHOENIX CONTACT Electronic housing
ME 45 UT TBUS BU
2713997
PHOENIX CONTACT
10 Pcs.
Electronic housing
Rail box, Bottom of housing with metal pin, high design, with ventilation slits, width: 45.2 mm, height: 99 mm, depth: 107.3 mm, color: blue (5015), cross bridge: Rail bus connector (optional), number of poles cross connector: 5
DIN rail enclosures, enclosure base with metal fixing foot, high design, with ventilation slots, width: 45.2 mm, height: 99 mm, depth: 107.3 mm, colour: blue (similar to RAL 5015), cross-connection: Connector for support rails (optional), no. of cross-connector poles: 5
Automation > Extruded profile modular housing
Housing (HS)
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Key Commercial Data
| Orderkey | 2713997 |
|---|---|
| Packing unit | 10 pc |
| Minimum order quantity | 10 pc |
| Note | Made to Order (non-returnable) |
| GTIN | 4017918914455 |
| Weight per Piece (excluding packing) | 47.320 g |
| Custom tariff number | 85472000 |
| Country of origin | DE (Germany) |
Ambient conditions
| Ambient temperature (storage/transport) | -40 °C ... 70 °C |
|---|---|
| Ambient temperature (assembly) | -5 °C ... 100 °C |
| Ambient temperature (operation) | -40 °C (depending on power dissipation) |
Technical data
| Power dissipation without gap | 8.2 W |
|---|---|
| Power dissipation with 20 mm gap | 16.5 W |
| Number of positions | 32 |
| 8 |
Environmental Product Compliance
| China RoHS | Environmentally friendly use period: unlimited = EFUP-e |
|---|---|
| No hazardous substances above threshold values |
Classifications
eCl@ss 4.027180401eCl@ss 4.127180401eCl@ss 5.027180506eCl@ss 5.127180500eCl@ss 6.027180800eCl@ss 7.027182702eCl@ss 8.027182702eCl@ss 9.027182702
| Feature Name | Feature Value |
|---|---|
| Type of enclosure (EF003086) | Closed |
| Housing connectable (EF003088) | No |
| Material (EF002169) | Other |
| Surface finishing (EF006569) | Other |
| Colour (EF000007) | Blue |
| RAL-number (EF000116) | 5015 |
| Width (EF000008) | 45.2 mm |
| Height (EF000040) | 99 mm |
| Depth (EF000049) | 107.3 mm |
