View larger
Images are for illustrative purposes only. Please refer to data sheet for details

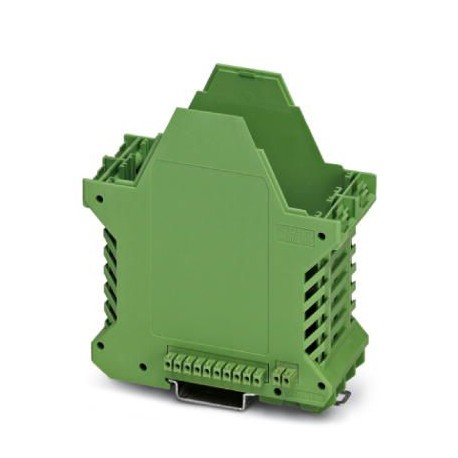

ME 45 UT/FE1 BUS/10+2 GN 2707440 PHOENIX CONTACT Electronic housing
ME 45 UT/FE1 BUS/10+2 GN
2707440
PHOENIX CONTACT
10 Pcs.
Electronic housing
Rail box, Bottom of the box with metal pin, with FE contact, high design, with ventilation slits, width: 45.2 mm, height: 99 mm, depth: 107.3 mm, color: green (6021), cross bridge: integrated bus connector, number of poles cross connector: 10+2, Bus connector: 10 contacts in parallel, 2 contacts in series
Automation > Extruded profile modular housing
Housing (HS)
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Key Commercial Data
| Orderkey | 2707440 |
|---|---|
| Packing unit | 10 pc |
| Minimum order quantity | 10 pc |
| Note | Made to Order (non-returnable) |
| GTIN | 4017918898182 |
| Weight per Piece (excluding packing) | 72.850 g |
| Custom tariff number | 85369010 |
| Country of origin | DE (Germany) |
Environmental Product Compliance
| China RoHS | Environmentally friendly use period: unlimited = EFUP-e |
|---|---|
| No hazardous substances above threshold values |
Classifications
eCl@ss 4.027180401eCl@ss 4.127180401eCl@ss 5.027180506eCl@ss 5.127180500eCl@ss 6.027180800eCl@ss 7.027182702eCl@ss 8.027182702eCl@ss 9.027182702
| Feature Name | Feature Value |
|---|---|
| Type of enclosure (EF003086) | Closed |
| Housing connectable (EF003088) | No |
| Material (EF002169) | Other |
| Surface finishing (EF006569) | Other |
| Colour (EF000007) | Green |
| RAL-number (EF000116) | 6021 |
| Width (EF000008) | 45.2 mm |
| Height (EF000040) | 99 mm |
| Depth (EF000049) | 107.3 mm |
