View larger
Images are for illustrative purposes only. Please refer to data sheet for details

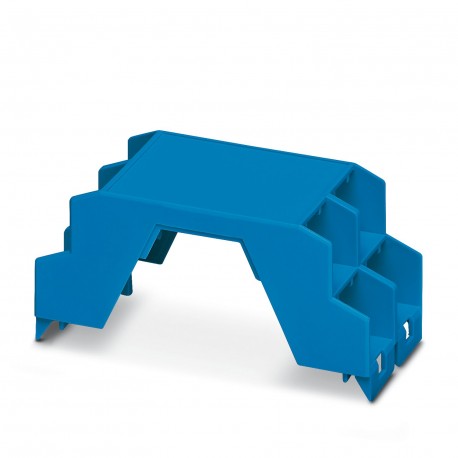

ME 45 OT-MSTBO BU 2854982 PHOENIX CONTACT Upper part of housing
ME 45 OT-MSTBO BU
2854982
PHOENIX CONTACT
10 Pcs.
Upper part of housing
Rail box, Top of the connector housing with base housing, width: 45.2 mm, height: 99 mm, depth: 45.85 mm, color: blue (5015)
DIN rail box, Top of the housing for connectors with base housing, width: 45.2 mm, height: 99 mm, depth: 45.85 mm, color: blue (Similar RAL 5015)
Automation > Extruded profile modular housing
Housing (HS)
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Key Commercial Data
| Orderkey | 2854982 |
|---|---|
| Packing unit | 10 pc |
| Minimum order quantity | 10 pc |
| GTIN | 4017918571832 |
| Weight per Piece (excluding packing) | 19.400 g |
| Custom tariff number | 85472000 |
| Country of origin | DE (Germany) |
Technical data
| Connection in acc. with standard | CUL |
|---|---|
| Nominal voltage UN | 300 V |
| Nominal current IN | 10 A |
| AWG/kcmil | 30-12 |
| Indicator1 | CUL1 |
| Number of positions | 32 |
| 64 |
Standards and Regulations
| Connection in acc. with standard | CUL |
|---|---|
| Flammability rating according to UL 94 | V0 |
Environmental Product Compliance
| China RoHS | Environmentally friendly use period: unlimited = EFUP-e |
|---|---|
| No hazardous substances above threshold values |
Classifications
eCl@ss 4.027180401eCl@ss 4.127180401eCl@ss 5.027180506eCl@ss 5.127180500eCl@ss 6.027180800eCl@ss 7.027182702eCl@ss 8.027182702eCl@ss 9.027182702
| Feature Name | Feature Value |
|---|---|
| Type of enclosure (EF003086) | Closed |
| Housing connectable (EF003088) | No |
| Suitable for rail mounting (EF003972) | No |
| Wall mounting possible (EF003973) | No |
| With integrated PCB-mounting connection system (EF003087) | No |
| Surface finishing (EF006569) | Other |
| Colour (EF000007) | Blue |
| RAL-number (EF000116) | 5015 |
| Width (EF000008) | 45.2 mm |
| Height (EF000040) | 99 mm |
| Depth (EF000049) | 45.85 mm |
