View larger
Images are for illustrative purposes only. Please refer to data sheet for details

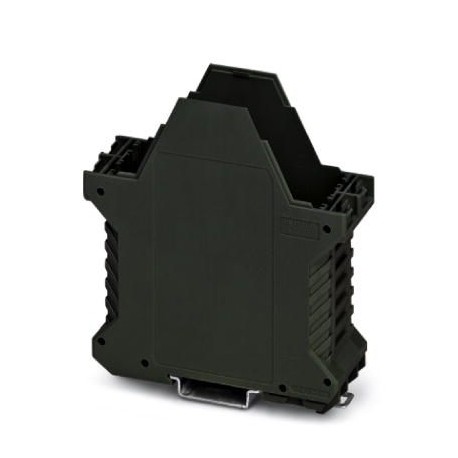

ME 35 UTG BK 2909992 PHOENIX CONTACT Mounting base housing
ME 35 UTG BK
2909992
PHOENIX CONTACT
100 Pcs.
Mounting base housing
Rail box, Lower part of the housing with metal pin, high design, without ventilation slits, width: 35.2 mm, height: 99 mm, depth: 107.3 mm, color: black (9005), cross bridge: without bus connector, number of poles cross connector: not relevant
Automation > Extruded profile modular housing
Housing (HS)
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Key Commercial Data
| Orderkey | 2909992 |
|---|---|
| Packing unit | 100 pc |
| Note | Made to Order (non-returnable) |
| GTIN | 4017918420093 |
| Weight per Piece (excluding packing) | 98.100 g |
| Custom tariff number | 85472000 |
| Country of origin | DE (Germany) |
Ambient conditions
| Ambient temperature (storage/transport) | -40 °C ... 70 °C |
|---|---|
| Ambient temperature (assembly) | -5 °C ... 100 °C |
| Ambient temperature (operation) | -40 °C (depending on power dissipation) |
Technical data
| Power dissipation without gap | 7.5 W |
|---|---|
| Power dissipation with 20 mm gap | 13.8 W |
| Number of positions | 24 |
Environmental Product Compliance
| China RoHS | Environmentally friendly use period: unlimited = EFUP-e |
|---|---|
| No hazardous substances above threshold values |
Classifications
eCl@ss 4.027180401eCl@ss 4.127180401eCl@ss 5.027180506eCl@ss 5.127180500eCl@ss 6.027180800eCl@ss 7.027182702eCl@ss 8.027182702eCl@ss 9.027182702
| Feature Name | Feature Value |
|---|---|
| Type of enclosure (EF003086) | Closed |
| Housing connectable (EF003088) | No |
| Material (EF002169) | Other |
| Surface finishing (EF006569) | Other |
| Colour (EF000007) | Black |
| RAL-number (EF000116) | 9005 |
| Width (EF000008) | 35.2 mm |
| Height (EF000040) | 99 mm |
| Depth (EF000049) | 107.3 mm |
