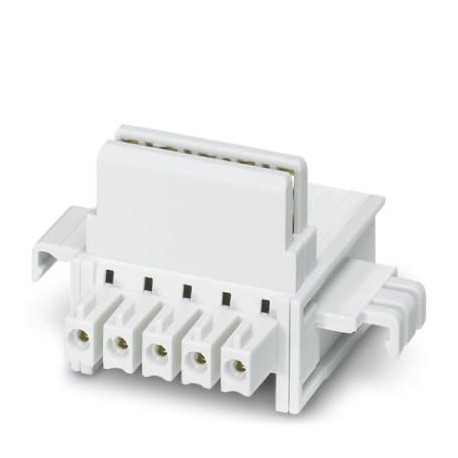

ME 22,5 TBUS 1,5/ 5-ST-3,81 GY 2201937 PHOENIX CONTACT DIN rail bus connectors
ME 22,5 TBUS 1,5/ 5-ST-3,81 GY
2201937
PHOENIX CONTACT
100 Pcs.
DIN rail bus connectors
Bus connectors for rail, color: gray, rated current: 8 A (parallel contacts), rated voltage (III/2): 125 V, number of poles: 5, item family: TBUS5-22.5.., pitch: 3.81 mm, mounting: Rail mounting, lock: without, fixing type: without, packaging type: packed in box, Items with gold contacts, bus connectors for connection with electronics boxes, 5 contacts in parallel
Connectors > Printed circuit board connector
Housing (HS)
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Environmental Product Compliance
| China RoHS | Environmentally friendly use period: unlimited = EFUP-e |
|---|---|
| No hazardous substances above threshold values |
Classifications
| Feature Name | Feature Value |
|---|---|
| Modular spacing contacts (EF007326) | 3.81 mm |
| Modular spacing connections (EF006827) | 3.81 mm |
| Rated current In (EF008250) | 8 A |
| Rated voltage (EF000228) | 125 V |
| Rated surge voltage (EF002993) | 2.5 kV |
| Over voltage category (EF006785) | III |
| Pollution degree (EF006786) | 2 |
| Type of electric connection (EF003961) | Other |
| Suitable for PCB thickness (EF007253) | 1.8 mm |
| Material insulation body (EF007543) | Other |
| Housing colour (EF000136) | Grey |
| Inflammability class of insulation material according to UL94 (EF002521) | V0 |
| Operating temperature (EF002393) | -40 °C |
| Type of fastening (EF002442) | Other |
| Type of banding (EF007011) | Carton (for SMD) |
