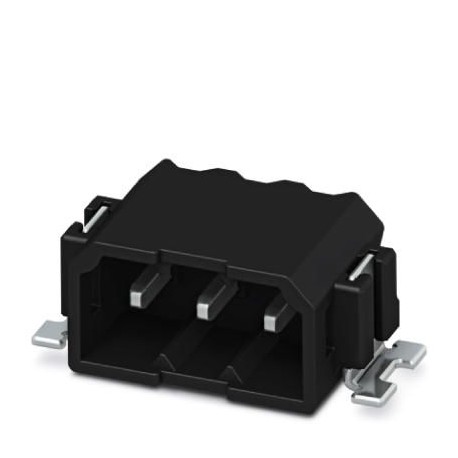

PHOENIX CONTACT SAMPLE PTSM 0,5/ 5-HH-2,5-SMD SAMPLE PTSM 0,5/ 5-HH-2,5-SMD 1786073 PHOENIX CONTACT Sample set View larger
Images are for illustrative purposes only. Please refer to data sheet for details

SAMPLE PTSM 0,5/ 5-HH-2,5-SMD 1786073 PHOENIX CONTACT Sample set

SAMPLE PTSM 0,5/ 5-HH-2,5-SMD

1786073

PHOENIX CONTACT

5 Pcs.

Sample set Printed circuit board base housing, nominal section: 0.5 mm², color: black, nominal current: 6 A, nominal voltage (III/2): 160 V, contact surface: Tin, contact type: Male, number of potentials: 5, number of rows: 1, number of poles: 5, number of connections: 5, family of articles: PTSM 0.5/.. -HH-SMD, pitch: 2.5 mm, mounting: SMD soldering, pin arrangement: Linear pin arrangement, pin length [P]: 2 mm, number of solder pins per potential: 1, plug-in system: COMBICON PTSM, Plug-in face orientation: Standard, locking: without, fixing type: without, packaging type: boxed, Item with twist protection pins

Connectors > Printed circuit board connector
PCB Connectors (PCC)

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

Key Commercial Data

Orderkey1786073
Packing unit5 pc
Minimum order quantity5 pc
GTIN4046356572200
Weight per Piece (excluding packing)1.360 g
Custom tariff number85366930
Country of originIN (India)

Dimensions

Length [ l ]9.5 mm
Width16.3 mm
Pitch2.5 mm
Dimension a10 mm
Width [ w ]16.3 mm
Height [ h ]5 mm
Height5 mm
Length of the solder pin2 mm
Pin spacing2.50 mm
Length9.5 mm

General

Range of articlesPTSM 0,5/..-HH-SMD
Insulating material groupIIIa
Rated surge voltage (III/3)2.5 kV
Rated surge voltage (III/2)2.5 kV
Rated surge voltage (II/2)2.5 kV
Rated voltage (III/3)50 V
Rated voltage (III/2)160 V
Rated voltage (II/2)160 V
Connection in acc. with standardEN-VDE
Nominal current IN6 A
Maximum load current6 A
Insulating materialLCP
Flammability rating according to UL 94V0
Colorblack
Number of positions5

Standards and Regulations

Connection in acc. with standardEN-VDE
Flammability rating according to UL 94V0

Environmental Product Compliance

China RoHSEnvironmentally friendly use period: unlimited = EFUP-e
No hazardous substances above threshold values

Classifications


Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
