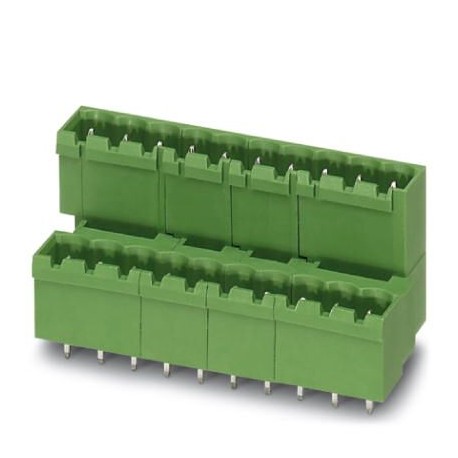

PHOENIX CONTACT MDSTBVA 2,5/16-G-5,08 MDSTBVA 2,5/16-G-5,08 1832784 PHOENIX CONTACT PCB headers, nominal current: 10 A, rated voltage (III/2): 320.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

MDSTBVA 2,5/16-G-5,08 1832784 PHOENIX CONTACT PCB headers, nominal current: 10 A, rated voltage (III/2): 320..

MDSTBVA 2,5/16-G-5,08

1832784

PHOENIX CONTACT

50 Pcs.

PCB headers, nominal current: 10 A, rated voltage (III/2): 320 V, number of positions: 16, pitch: 5.08 mm, color: green, contact surface: Tin, mounting: Wave soldering Printed circuit board base case, nominal section: 2.5 mm², color: green, nominal current: 10 A, nominal voltage (III/2): 320 V, contact surface: Tin, contact type: Male, number of potentials: 32, number of rows: 2, number of poles: 16, number of connections: 32, family of articles: MDSTBVA 2.5/.. -G, pitch: 5.08 mm, mounting: Wave soldering, pin arrangement: Linear pin arrangement, pin length [P]: 3.9 mm, number of solder pins per potential: 1, plug-in system: COMBICON MSTB 2.5, Plug-in face orientation: Standard, locking: without, fixing type: without, packaging type: boxed

Connectors > Printed circuit board connector
PCB Connectors (PCC)

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

PCB headers, nominal current: 10 A, rated voltage (III/2): 320 V, number of positions: 16, pitch: 5.08 mm, color: green, contact surface: Tin, mounting: Wave soldering

Key Commercial Data

Orderkey1832784
Packing unit1
GTIN4046356903622
Custom tariff number85366930

Dimensions

Length [ l ]23.7 mm
Width85.82 mm
Pitch5.08 mm
Dimension a76.2 mm
Width [ w ]85.82 mm
Height [ h ]25.9 mm
Height22 mm
Length of the solder pin3.9 mm
Pin dimensions1 x 1 mm
Length23.7 mm

General

Range of articlesMDSTBVA 2,5/..-G
Rated voltage (III/3)250 V
Connection in acc. with standardEN-VDE
Nominal current IN10 A
Colorgreen
Number of positions16

Standards and Regulations

Connection in acc. with standardEN-VDE
CUL

Environmental Product Compliance

China RoHSEnvironmentally friendly use period: unlimited = EFUP-e
No hazardous substances above threshold values

Classifications

eCl@ss

eCl@ss 5.127260700
eCl@ss 6.027260700
eCl@ss 7.027440402
eCl@ss 8.027440402
eCl@ss 9.027440402

ETIM

ETIM 5.0EC002637
ETIM 6.0EC002637
ETIM 7.0EC002637

UNSPSC

UNSPSC 13.239121409

ETIM for 1832784 Connectors (EC002637)
Feature Name Feature Value
Connector model (EF007495) Fixed connector
Contact type (EF001587) Pin
Number of poles (EF001391) 32
Number of plug-in contact rows (EF006935) 2
Modular spacing contacts (EF007326) 5.08 mm
Modular spacing connections (EF006827) 5.08 mm
Rated current In (EF008250) 10 A
Rated voltage (EF000228) 320 V
Rated surge voltage (EF002993) 4 kV
Over voltage category (EF006785) III
Pollution degree (EF006786) 2
Material of contact surface (EF004020) Tin
Type of electric connection (EF003961) Other
Diameter connection pin (EF006823) 1.4 mm
Length pin (EF006825) 3.9 mm
Material insulation body (EF007543) Other
Housing colour (EF000136) Green
Inflammability class of insulation material according to UL94 (EF002521) V0
Operating temperature (EF002393) -40 °C
Type of fastening (EF002442) Other
Type of banding (EF007011) Carton (for SMD)

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
