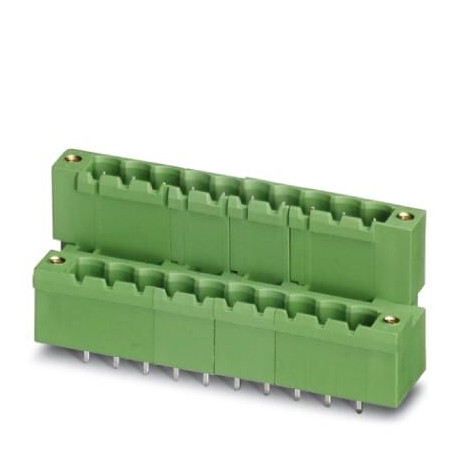

MDSTBV 2,5/16-GF-5,08 GY 1716075 PHOENIX CONTACT Housing base for printed circuit board, nominal current: 10..
MDSTBV 2,5/16-GF-5,08 GY
1716075
PHOENIX CONTACT
50 Pcs.
Housing base for printed circuit board, nominal current: 10 A, voltage and sizing (III/2): 320 V, number of poles: 16, pitch: 5,08 mm, color: gray, surface contacts: Tin, assembly: wave Soldering, The article can be aligned with different numbers of poles! In the case of a combination with party plug-MVSTB or FKCV, should be used in a connector MVSTBW (or FKCVW) and an MVSTBR plug (or FKCVR), respectively. A combination with parts plug-TMSTBP is not possible!
Printed circuit board base housing, nominal section: 2.5 mm², color: gray, nominal current: 10 A, nominal voltage (III/2): 320 V, contact surface: Tin, contact type: Male, number of potentials: 32, number of rows: 2, number of poles: 16, number of connections: 32, family of articles: MDSTBV 2.5/.. -GF, pitch: 5.08 mm, mounting: Wave welding, pin arrangement: Linear pin arrangement, pin length [P]: 3.9 mm, number of welding pins per potential: 1, plug-in system: COMBICON MSTB 2.5, Plug-in face orientation: Standard, locking: Screw lock, fixing type: Air clamping (thread), packaging type: boxed packaging, The item can be aligned with different numbers of poles! In the case of a combination with MVSTB or FKCV plug-in parts, an MVSTBW (or FKCVW) connector and an MVSTBR (or FKCVR) connector must be used, respectively. A combination with TMSTBP plug-in parts is not possible!
Connectors > Printed circuit board connector
PCB Connectors (PCC)
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Socket for printed circuits, nominal current: 10 A, rated operating voltage (III/2): 320 V, number of poles: 16, pitch: 5.08 mm, color: gray, surface of contact: Tin, assembly: Soldering wave, The article can be aligned with different numbers of poles! In the case of combinations with plugs MVSTB or FKCV, use, respectively, the plugs MVSTBW (or FKCVW) and an MVSTBR plug (or FKCVR-). The combination with the thorns TMSTBP is not allowed.
Commercial data
| The code for the order | One million seven hundred sixteen thousand seventy five |
|---|---|
| Pieces/pack. | 50 PCS |
| Sales key | AAAFHA - |
| The amount of minimum order | 50 PCS |
| GTIN | Four trillion fifty five billion six hundred twenty six million four hundred thirty seven thousand three hundred eighty five |
| Weight per piece (package included) | 29,866 g |
| Number customs tariff | Eighty five million three hundred sixty six thousand nine hundred ninety |
Size
| Length [ l ] | 23,7 mm |
|---|---|
| Width | 93,98 mm |
| Step | 5.08 mm |
| Measure | 5.08 mm |
| Width [ w ] | 93,98 mm |
| Height [ h ] | 26 mm |
| Mounting height | 22 mm |
| Pin length solder | 3.9 mm |
| The size of the shanks | 1 x 1 mm |
| Length | 23,7 mm |
General
| Family article | MDSTBV 2,5/..-GF |
|---|---|
| Group insulating material | III |
| Rating voltage (III/2) | 320 V |
| Rated current IN | 10 To |
| Class behaviour according to UL 94 | V0 |
| Color | grey |
| N. of poles | Sixteen |
Regulations and requirements
| Class behaviour according to UL 94 | V0 |
|---|
Environmental Product Compliance
| REACh SVHC | |
|---|---|
| Lead 7439-92-1 | |
| China RoHS | Period of use conforms to the target without damage to the environment (EFUP): 50 years |
| The information on hazardous substances found in the declaration of the manufacturer under "Downlaods" |
Rankings
eCl@ss
| eCl@ss 5.1 | Twenty seven million two hundred sixty thousand seven hundred |
|---|---|
| eCl@ss 6.0 | Twenty seven million two hundred sixty thousand seven hundred |
| eCl@ss 7.0 | Twenty seven million four hundred forty thousand four hundred two |
| eCl@ss 8.0 | Twenty seven million four hundred forty thousand four hundred two |
| eCl@ss 9.0 | Twenty seven million four hundred forty thousand four hundred two |
ETIM
| ETIM 5.0 | EC002637 |
|---|---|
| ETIM 6.0 | EC002637 |
| ETIM 7.0 | EC002637 |
