View larger
Images are for illustrative purposes only. Please refer to data sheet for details

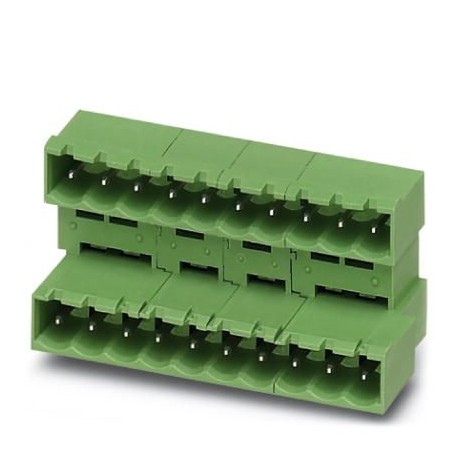

MDSTBA 2,5/10-G-5,08 BDNZ:515 1752450 PHOENIX CONTACT Printed-circuit board connector
MDSTBA 2,5/10-G-5,08 BDNZ:515
1752450
PHOENIX CONTACT
1000 Pcs.
Printed-circuit board connector
Printed Circuit Board Base Housing
Connectors > Printed circuit board connector
PCB Connectors (PCC)
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Key Commercial Data
| Orderkey | 1752450 |
|---|---|
| Packing unit | 50 pc |
| Minimum order quantity | 50 pc |
| Note | Made to Order (non-returnable) |
| GTIN | 4046356321457 |
| Weight per Piece (excluding packing) | 15.290 g |
| Custom tariff number | 85366930 |
| Country of origin | DE (Germany) |
Dimensions
| Pitch | 5.08 mm |
|---|---|
| Dimension a | 45.72 mm |
| Height | 24 mm |
| Length of the solder pin | 3.2 mm |
| Pin dimensions | 1 x 1 mm |
General
| Range of articles | MDSTBA 2,5/..-G |
|---|---|
| Rated voltage (III/3) | 250 V |
| Connection in acc. with standard | EN-VDE |
| Nominal current IN | 10 A |
| Color | green |
| Number of positions | 10 |
Environmental Product Compliance
| China RoHS | Environmentally friendly use period: unlimited = EFUP-e |
|---|---|
| No hazardous substances above threshold values |
