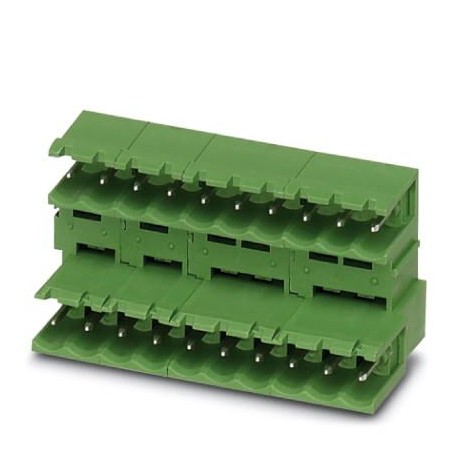

PHOENIX CONTACT MDSTB 2,5/ 6-G-5,08 AU MDSTB 2,5/ 6-G-5,08 AU 1027275 PHOENIX CONTACT Feed-through header MDSTB 2,5/ 6-G-5,08 AU 1027275 View larger
Images are for illustrative purposes only. Please refer to data sheet for details

MDSTB 2,5/ 6-G-5,08 AU 1027275 PHOENIX CONTACT Feed-through header MDSTB 2,5/ 6-G-5,08 AU 1027275

MDSTB 2,5/ 6-G-5,08 AU

1027275

PHOENIX CONTACT

500 Pcs.

Feed-through header - MDSTB 2,5/ 6-G-5,08 AU - 1027275 Printed circuit board base housing, nominal section: 2.5 mm², color: green, nominal current: 10 A, nominal voltage (III/2): 320 V, contact surface: Gold, contact type: Male, number of potentials: 12, number of rows: 2, number of poles: 6, number of connections: 12, family of articles: MDSTB 2.5/.. -G, pitch: 5.08 mm, mounting: Wave soldering, pin arrangement: Linear pin arrangement, pin length [P]: 3.2 mm, number of solder pins per potential: 1, plug-in system: COMBICON MSTB 2.5, Plug-in face orientation: Standard, locking: without, fixing type: without, packaging type: boxed PCB headers, nominal current: 10 A, nominal cross section: 2.5 mm², number of positions: 6, pitch: 5.08 mm, color: green, contact surface: Gold, mounting: Wave soldering, pin layout: Linear pinning, solder pin [P]: 3.2 mm

Connectors > Printed circuit board connector
PCB Connectors (PCC)

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

Key Commercial Data

Orderkey1027275
Packing unit1 pc
Minimum order quantity500 pc
GTIN4055626520278
Weight per Piece (excluding packing)10.000 g
Custom tariff number85366930
Country of originDE (Germany)

Dimensions

Length [ l ]22.1 mm
Width33.02 mm
Pitch5.08 mm
Dimension a25.4 mm
Width [ w ]33.02 mm
Height [ h ]26.9 mm
Height23.7 mm
Length of the solder pin3.2 mm
Length22.1 mm
Back to top

General

Range of articlesMDSTB 2,5/..-G
Colorgreen
Number of positions6
Back to top

Environmental Product Compliance

China RoHSEnvironmentally friendly use period: unlimited = EFUP-e
No hazardous substances above threshold values
Back to top

Classifications

eCl@ss

eCl@ss 4.027260700
eCl@ss 4.127260700
eCl@ss 5.027260700
eCl@ss 5.127260700
eCl@ss 6.027260700
eCl@ss 7.027440402
eCl@ss 8.027440402
eCl@ss 9.027440402
Back to top

ETIM

ETIM 5.0EC002637
ETIM 6.0EC002637
ETIM 7.0EC002637
Back to top

ETIM for 1027275 Connectors (EC002637)
Feature Name Feature Value
Connector model (EF007495) Fixed connector
Contact type (EF001587) Pin
Number of poles (EF001391) 12
Number of plug-in contact rows (EF006935) 2
Modular spacing contacts (EF007326) 5.08 mm
Modular spacing connections (EF006827) 5.08 mm
Rated current In (EF008250) 10 A
Rated voltage (EF000228) 320 V
Rated surge voltage (EF002993) 4 kV
Over voltage category (EF006785) III
Pollution degree (EF006786) 2
Material of contact surface (EF004020) Gold
Type of electric connection (EF003961) Other
Diameter connection pin (EF006823) 1.4 mm
Length pin (EF006825) 3.23 mm
Material insulation body (EF007543) Other
Housing colour (EF000136) Green
Inflammability class of insulation material according to UL94 (EF002521) V0
Operating temperature (EF002393) -40 °C
Type of fastening (EF002442) Other
Type of banding (EF007011) Carton (for SMD)
