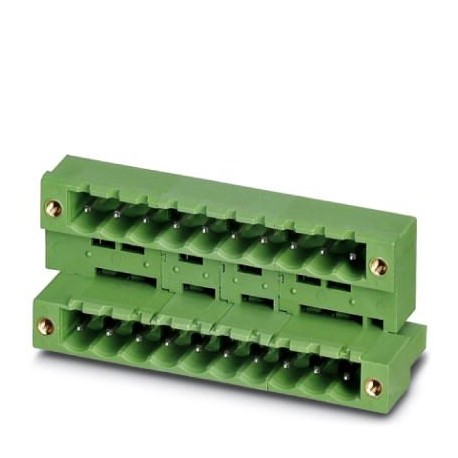

MDSTB 2,5/12-GF-5,08 AU 1714576 PHOENIX CONTACT Feed-through header
MDSTB 2,5/12-GF-5,08 AU
1714576
PHOENIX CONTACT
50 Pcs.
Feed-through header
Printed circuit board base housing, nominal section: 2.5 mm², color: green, nominal current: 10 A, dimensioning voltage (III/2): 320 V, contact surface: Gold, contact type: Male, Number of potentials: 24, Number of poles per row: 12, number of connections: 24, family of articles: MDSTB 2.5/.. -GF, pitch: 5.08 mm, mounting: Wave welding, pin arrangement: Linear pin arrangement, pin length [P]: 3.2 mm, Stecksystem: CLASSIC COMBICON, Locking: Screw lock, packaging type: boxed, The item can be aligned with different numbers of poles! In the case of a combination with MVSTB or FKCV plug-in parts, an MVSTBW (or FKCVW) connector and an MVSTBR (or FKCVR) connector must be used, respectively. A combination with TMSTBP plug-in parts is not possible!
Connectors > Printed circuit board connector
PCB Connectors (PCC)
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Dimensions
| Length [ l ] | 22.1 mm |
|---|---|
| Pitch | 5.08 mm |
| Dimension a | 55.88 mm |
| Height | 24 mm |
| Length of the solder pin | 3.2 mm |
| Pin dimensions | 1 x 1 mm |
| Length | 22.1 mm |
General
| Range of articles | MDSTB 2,5/..-GF |
|---|---|
| Insulating material group | I |
| Rated voltage (III/2) | 320 V |
| Nominal current IN | 10 A |
| Flammability rating according to UL 94 | V0 |
| Color | green |
| Number of positions | 12 |
Environmental Product Compliance
| China RoHS | Environmentally Friendly Use Period = 50 |
|---|---|
| For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” |
