View larger

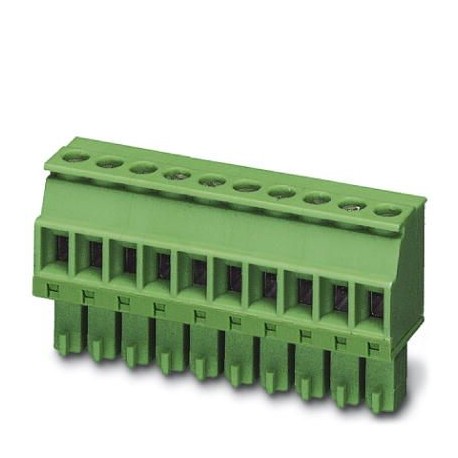

Images are for illustrative purposes only. Please refer to data sheet for details
MCVR 1,5/ 2-ST-3,5 BD: 60,61 1714202 PHOENIX CONTACT Printed-circuit board connector
MCVR 1,5/ 2-ST-3,5 BD: 60,61
1714202
PHOENIX CONTACT
50 Pcs.
Printed-circuit board connector
Connector for printed circuit board, nominal section: 1.5 mm², color: green, nominal current: 8 A, dimensioning voltage (III/2): 160 V, contact surface: Tin, contact type: Female connection, Number of potentials: 2, Number of rows: 1, Number of poles per row: 2, number of connections: 2, family of articles: MCVR 1.5/.. -ST, pitch: 3.5 mm, connection type: Screw connection with traction capsule, conductor connection direction/printed circuit board: 90 °, Stecksystem: MINI COMBICON, Lock: without, packaging type: boxed
Cables > Cable connector
PCB Connectors (PCC)
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲General
| Range of articles | MCVR 1,5/..-ST |
|---|---|
| Number of positions | 2 |
| Connection method | Screw connection with tension sleeve |
| Insulating material group | I |
| Rated voltage (III/2) | 160 V |
| Nominal current IN | 8 A |
| Nominal cross section | 1.5 mm² |
| Flammability rating according to UL 94 | V0 |
| Screw thread | M2 |
Environmental Product Compliance
| China RoHS | Environmentally Friendly Use Period = 50 |
|---|---|
| For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” |
