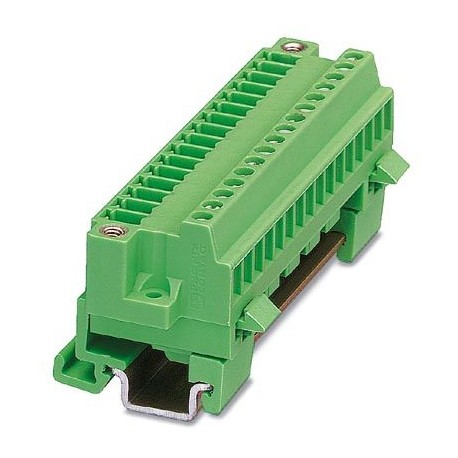

PHOENIX CONTACT MCVK 1,5/ 8-GF-3,81 MCVK 1,5/ 8-GF-3,81 1832934 PHOENIX CONTACT Feed-through header View larger
Images are for illustrative purposes only. Please refer to data sheet for details

MCVK 1,5/ 8-GF-3,81 1832934 PHOENIX CONTACT Feed-through header

MCVK 1,5/ 8-GF-3,81

1832934

PHOENIX CONTACT

50 Pcs.

Feed-through header Rail connector, nominal section: 1.5 mm², color: green, nominal current: 8 A, nominal voltage (III/2): 160 V, contact surface: Tin, contact type: Male, number of potentials: 8, number of rows: 1, number of poles: 8, number of connections: 8, family of articles: MCVK 1.5/.. -GF, pitch: 3.81 mm, connection type: Screw connection with traction capsule, screw clamping form: L Longitudinal slot, mounting: Rail, driver/printed circuit board connection direction: 0 °, plug-in system: COMBICON MC 1.5, lock: Screw lock, fixing type: Air clamping (thread), packaging type: boxed

Automation > Feed-through terminal block
PCB Connectors (PCC)

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

Key Commercial Data

Orderkey1832934
Packing unit50 pc
NoteMade to Order (non-returnable)
GTIN4017918051631
Weight per Piece (excluding packing)7.210 g
Custom tariff number85369010
Country of originPL (Poland)

Dimensions

Pitch3.81 mm
Dimension a26.67 mm

General

Range of articlesMCVK 1,5/..-GF
Number of positions8
Connection methodScrew connection with tension sleeve
Insulating material groupI
Rated surge voltage (III/3)2.5 kV
Rated surge voltage (III/2)2.5 kV
Rated surge voltage (II/2)2.5 kV
Rated voltage (III/3)160 V
Rated voltage (III/2)160 V
Rated voltage (II/2)320 V
Connection in acc. with standardEN-VDE
Nominal current IN8 A
Nominal cross section1.5 mm²
Maximum load current8 A
Insulating materialPA
Flammability rating according to UL 94V0
Internal cylindrical gageA1
Stripping length7 mm
Screw threadM2
Tightening torque, min0.22 Nm
Tightening torque max0.25 Nm

Connection data

2 conductors with same cross section, solid min.0.14 mm²
2 conductors with same cross section, solid max.0.5 mm²
2 conductors with same cross section, stranded min.0.14 mm²
2 conductors with same cross section, stranded max.0.75 mm²
2 conductors with same cross section, stranded, ferrules without plastic sleeve, min.0.25 mm²
2 conductors with same cross section, stranded, ferrules without plastic sleeve, max.0.34 mm²
2 conductors with same cross section, stranded, TWIN ferrules with plastic sleeve, min.0.5 mm²
2 conductors with same cross section, stranded, TWIN ferrules with plastic sleeve, max.0.5 mm²
Minimum AWG according to UL/CUL30
Maximum AWG according to UL/CUL14

Standards and Regulations

Connection in acc. with standardEN-VDE
CSA
Flammability rating according to UL 94V0

Environmental Product Compliance

REACh SVHCLead 7439-92-1
China RoHSEnvironmentally Friendly Use Period = 50
For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration”

Classifications


ETIM for 1832934 Terminal blocks (EC001284)
Feature Name Feature Value
Explosion-tested version 'Ex e' (EF008498) No
Number of poles (EF001391) 8
Closing plate required (EF002525) Yes
Colour (EF000007) Green

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
