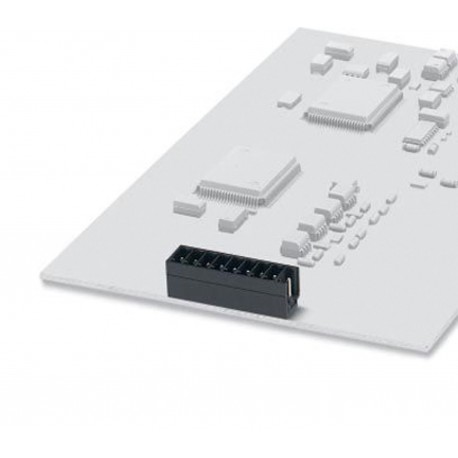

PHOENIX CONTACT MCV 1,5/ 7-GR-3,5 THT MCV 1,5/ 7-GR-3,5 THT 1961850 PHOENIX CONTACT Feed-through header View larger
Images are for illustrative purposes only. Please refer to data sheet for details

MCV 1,5/ 7-GR-3,5 THT 1961850 PHOENIX CONTACT Feed-through header

MCV 1,5/ 7-GR-3,5 THT

1961850

PHOENIX CONTACT

50 Pcs.

Feed-through header Printed circuit board base case, color: black, contact surface: Tin, number of poles: 7, family of items: MCV 1.5/.. -GR-THT, pitch: 3.5 mm, pin arrangement: Linear pin arrangement, pin length [P]: 3.4 mm, packaging type: boxed, "Two In One" male connectors should always consist of a left (L) and a right (R) segment. Note the corresponding opposite part under "Accessories" to complete the THR plug. For user information and design recommendations on Through Hole Reflow technology, see "Downloads."

Connectors > Printed circuit board connector
PCB Connectors (PCC)

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

Key Commercial Data

Orderkey1961850
Packing unit50 pc
Minimum order quantity50 pc
NoteMade to Order (non-returnable)
Catalog pagePage 97 (CC-2005)
GTIN4017918916176
Weight per Piece (excluding packing)2.770 g
Custom tariff number85366930
Country of originDE (Germany)

Dimensions

Length [ l ]7.25 mm
Pitch3.5 mm
Dimension a21 mm
Height [ h ]9.2 mm
Height10 mm
Length of the solder pin3.4 mm
Pin spacing3.50 mm
Length7.25 mm

General

Range of articlesMCV 1,5/..-GR-THT
Insulating material groupIIIa
Rated surge voltage (III/3)2.5 kV
Rated surge voltage (III/2)2.5 kV
Rated surge voltage (II/2)2.5 kV
Rated voltage (III/3)160 V
Rated voltage (III/2)160 V
Rated voltage (II/2)250 V
Connection in acc. with standardEN-VDE
Nominal current IN8 A
Maximum load current8 A (per position)
Insulating materialPA
Flammability rating according to UL 94V0
Colorblack
Number of positions7

Standards and Regulations

Connection in acc. with standardEN-VDE
CUL
Flammability rating according to UL 94V0

Environmental Product Compliance

China RoHSEnvironmentally friendly use period: unlimited = EFUP-e
No hazardous substances above threshold values
