PHOENIX CONTACT MCV 1,5/ 5-GF-3,5 P14 AUTHRR56 MCV 1,5/ 5-GF-3,5 P14 AUTHRR56 1832483 PHOENIX CONTACT PCB headers, nominal current: 8 A, rated voltage (III.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

MCV 1,5/ 5-GF-3,5 P14 AUTHRR56 1832483 PHOENIX CONTACT PCB headers, nominal current: 8 A, rated voltage (III..

MCV 1,5/ 5-GF-3,5 P14 AUTHRR56

1832483

PHOENIX CONTACT

200 Pcs.

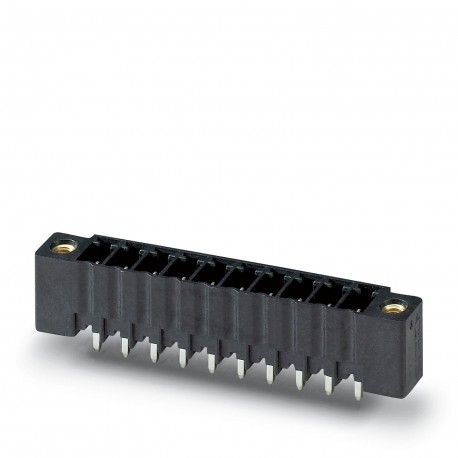

PCB headers, nominal current: 8 A, rated voltage (III/2): 160 V, number of positions: 5, pitch: 3.5 mm, color: black, contact surface: Gold, mounting: THR soldering Printed circuit board base case, nominal section: 1.5 mm², color: black, nominal current: 8 A, nominal voltage (III/2): 160 V, contact surface: Gold, contact type: Male, number of rows: 1, number of poles: 5, family of articles: MCV 1.5/.. -GF-THR, pitch: 3.5 mm, mounting: Solder THR, pin arrangement: Linear pin arrangement, pin length [P]: 1.4 mm, number of solder pins per potential: 1, plug-in system: COMBICON MC 1.5, Plug-in face orientation: Standard, lock: Screw lock, fixing type: Air clamping (thread), packaging type: 56 mm wide strap PCB headers, nominal current: 8 A, rated voltage (III/2): 160 V, nominal cross section: 1.5 mm², number of positions: 5, pitch: 3.5 mm, color: black, contact surface: Gold, mounting: THR soldering, pin layout: Linear pinning, solder pin [P]: 1.4 mm

Connectors > Printed circuit board connector
PCB Connectors (PCC)

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

Key Commercial Data

Orderkey1832483
Packing unit1
GTIN4046356896689
Custom tariff number85366930

Drawings

Diagram

Diagram
Type: TFMC 1,5/ 8-STF-3,5 BK AU with MCV 1,5/ 8-GF-3,5 AUP26THRR56

Dimensional drawing

Dimensional drawing
