PHOENIX CONTACT MCV 1,5/ 5-G-3,81 P14 THRR56 MCV 1,5/ 5-G-3,81 P14 THRR56 1037540 PHOENIX CONTACT Feed-through header MCV 1,5/ 5-G-3,81 P14 THRR56 1037540 View larger
Images are for illustrative purposes only. Please refer to data sheet for details

MCV 1,5/ 5-G-3,81 P14 THRR56 1037540 PHOENIX CONTACT Feed-through header MCV 1,5/ 5-G-3,81 P14 THRR56 1037540

MCV 1,5/ 5-G-3,81 P14 THRR56

1037540

PHOENIX CONTACT

200 Pcs.

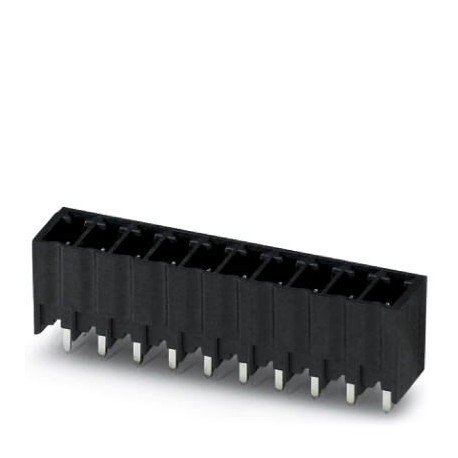

Feed-through header - MCV 1,5/ 5-G-3,81 P14 THRR56 - 1037540 Printed circuit board base housing, nominal section: 1.5 mm², color: black, nominal current: 8 A, dimensioning voltage (III/2): 160 V, contact surface: Tin, contact type: Male, Number of potentials: 5, Number of rows: 1, Number of poles per row: 5, number of connections: 5, article family: MCV 1.5/.. -G-THR, pitch: 3.81 mm, mounting: Weld THR, pin arrangement: Linear pin arrangement, pin length [P]: 1.4 mm, Stecksystem: MINI COMBICON, Locking: without, packaging type: 56 mm wide strap PCB headers, nominal current: 8 A, rated voltage (III/2): 160 V, nominal cross section: 1.5 mm², number of positions: 5, pitch: 3.81 mm, color: black, contact surface: Tin, mounting: THR soldering, pin layout: Linear pinning, solder pin [P]: 1.4 mm

Connectors > Printed circuit board connector
PCB Connectors (PCC)

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

Key Commercial Data

Orderkey1037540
Packing unit1
GTIN4055626570372
Custom tariff number85366930

Drawings

Diagram

Diagram
Type: FMC 1,5/...-ST-3,81 with MCV 1,5/...-G-3,81 P.. THR

Diagram

Diagram
Type: MC 1,5/...-ST-3,81 with MCV 1,5/...-G-3,81 P26 THR

Diagram

Diagram
Type: FRONT-MC 1,5/...-ST-3,81 with MCV 1,5/...-G-3,81 P...THR

Back to top

Dimensions

Length [ l ]7.25 mm
Width20.44 mm
Pitch3.81 mm
Dimension a15.24 mm
Width [ w ]20.44 mm
Height [ h ]10.6 mm
Height9.2 mm
Length of the solder pin1.4 mm
Pin dimensions0.8 x 0.8 mm
Length7.25 mm
Back to top

General

Range of articlesMCV 1,5/..-G-THR
Colorblack
Number of positions5
Back to top

Environmental Product Compliance

China RoHSEnvironmentally friendly use period: unlimited = EFUP-e
No hazardous substances above threshold values
Back to top

Classifications

eCl@ss

eCl@ss 4.027260700
eCl@ss 4.127260700
eCl@ss 5.027260700
eCl@ss 5.127260700
eCl@ss 6.027260700
eCl@ss 7.027440402
eCl@ss 8.027440402
eCl@ss 9.027440402
Back to top

ETIM

ETIM 5.0EC002637
ETIM 6.0EC002637
ETIM 7.0EC002637
Back to top

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
