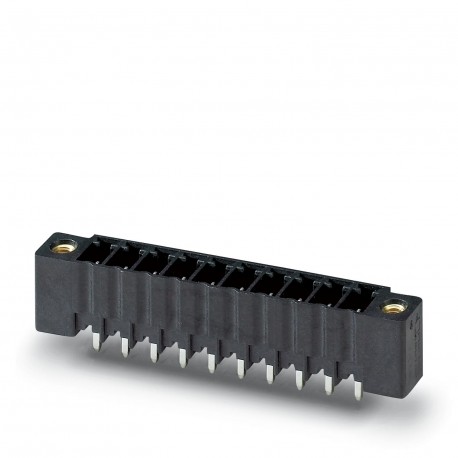

MCV 1,5/ 3-GF-3,5 P14 AUTHRR56 1832470 PHOENIX CONTACT PCB headers, nominal current: 8 A, rated voltage (III..

MCV 1,5/ 3-GF-3,5 P14 AUTHRR56

1832470

PHOENIX CONTACT

2000 Pcs.

PCB headers, nominal current: 8 A, rated voltage (III/2): 160 V, number of positions: 3, pitch: 3.5 mm, color: black, contact surface: Gold, mounting: THR soldering Printed circuit board base housing, nominal section: 1.5 mm², color: black, nominal current: 8 A, nominal voltage (III/2): 160 V, contact surface: Gold, contact type: Male, number of rows: 1, number of poles: 3, family of articles: MCV 1.5/.. -GF-THR, pitch: 3.5 mm, mounting: Solder THR, pin arrangement: Linear pin arrangement, pin length [P]: 1.4 mm, number of solder pins per potential: 1, plug-in system: COMBICON MC 1.5, Plug-in face orientation: Standard, lock: Screw lock, fixing type: Air clamping (thread), packaging type: 56 mm wide strap PCB headers, nominal cross section: 1.5 mm2, color: black, nominal current: 8 A, rated voltage (III/2): 160 V, contact surface: Au, contact connection type: Pin, number of rows: 1, number of positions: 3, product range: MCV 1,5/..-GF-THR, pitch: 3.5 mm, mounting: THR soldering / wave soldering, pin layout: Linear pinning, solder pin [P]: 1.4 mm, number of solder pins per potential: 1, plug-in system: COMBICON MC 1,5, Pin connector pattern alignment: Standard, locking: Screw locking mechanism, mounting: Threaded flange, type of packaging: 56 mm wide tape

Connectors > Printed circuit board connector
PCB Connectors (PCC)

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲
Technical data
Product properties
Product typePCB headers
Product familyMCV 1,5/..-GF-THR
Product lineCOMBICON Connectors S
Number of positions3
Pitch3.5 mm
Number of rows1
Mounting flangeThreaded flange
Pin layoutLinear pinning
Solder pins per potential1
Data management status
Article revision03
Electrical properties
Nominal current IN8 A
Nominal voltage UN160 V
Contact resistance4 mΩ
Rated voltage (III/3)160 V
Rated surge voltage (III/3)2.5 kV
Rated voltage (III/2)160 V
Rated surge voltage (III/2)2.5 kV
Rated voltage (II/2)250 V
Rated surge voltage (II/2)2.5 kV
Mounting
Mounting typeTHR soldering / wave soldering
Pin layoutLinear pinning
Flange
Tightening torque0.3 Nm
Processing notes
ProcessReflow/wave soldering
Moisture Sensitive LevelMSL 1
Classification temperature Tc260 °C
Solder cycles in the reflow3
Material specifications
Material data - contact
NoteWEEE/RoHS-compliant, free of whiskers according to IEC 60068-2-82/JEDEC JESD 201
Contact materialCu alloy
Surface characteristicspartially gold-plated
Metal surface contact area (top layer)Gold (0.8 - 1.4 µm Au)
Metal surface contact area (middle layer)Nickel (2 - 4 µm Ni)
Metal surface soldering area (top layer)Tin (3 - 5 µm Sn)
Metal surface soldering area (middle layer)Nickel (2 - 4 µm Ni)
Material data - housing
Color (Housing)black (9005)
Insulating materialLCP
Insulating material groupIIIa
CTI according to IEC 60112175
Flammability rating according to UL 94V0
Dimensions
Dimensional drawingdvbtjqggdc.jpg
Pitch3.5 mm
Width [w]20.8 mm
Height [h]10.6 mm
Length [l]7.25 mm
Installed height9.2 mm
Solder pin length [P]1.4 mm
Pin dimensions0.8 x 0.8 mm
PCB design
Hole diameter1.2 mm
Mechanical tests
Visual inspection
SpecificationIEC 60512-1-1:2002-02
ResultTest passed
Dimension check
SpecificationIEC 60512-1-2:2002-02
ResultTest passed
Resistance of inscriptions
SpecificationIEC 60068-2-70:1995-12
ResultTest passed
Polarization and coding
SpecificationIEC 60512-7:1993-08 (Polarization)
ResultTest passed
Contact holder in insert
SpecificationIEC 60512-8:1993-01
Contact holder in insert
Requirements >20 N		Test passed
Insertion and withdrawal forces
ResultTest passed
No. of cycles100
Insertion strength per pos. approx.2 N
Withdraw strength per pos. approx.1.5 N
Electrical tests
Thermal test Test group C
SpecificationIEC 60512-5-1:2002-02
Tested number of positions8
Insulation resistance
SpecificationIEC 60512-3-1:2002-02
Insulation resistance, neighboring positions1012Ω
Air clearances and creepage distances
SpecificationIEC 60664-1:2007-04
Insulating material groupIIIa
Comparative tracking index (IEC 60112)CTI 175
Rated insulation voltage (III/3)160 V
Rated surge voltage (III/3)2.5 kV
minimum clearance value - non-homogenous field (III/3)1.5 mm
minimum creepage distance (III/3)2.5 mm
Rated insulation voltage (III/2)160 V
Rated surge voltage (III/2)2.5 kV
minimum clearance value - non-homogenous field (III/2)1.5 mm
minimum creepage distance (III/2)1.6 mm
Rated insulation voltage (II/2)250 V
Rated surge voltage (II/2)2.5 kV
minimum clearance value - non-homogenous field (II/2)1.5 mm
minimum creepage distance (II/2)2.5 mm
Environmental and real-life conditions
Vibration test
SpecificationIEC 60068-2-6:1995-03
Frequency10 - 500 - 10 Hz
Sweep speed1 octave/min
Amplitude0.35 mm (10 Hz ... 60.1 Hz)
Acceleration5g (60.1 Hz ... 500 Hz)
Test duration per axis2.5 h
Test directionsX-, Y- and Z-axis
Durability test
SpecificationIEC 60512-5:1992-08
Impulse withstand voltage at sea level2.95 kV
Contact resistance R14 mΩ
Contact resistance R24.5 mΩ
Insertion/withdrawal cycles100
Climatic test
SpecificationISO 6988:1985-02
Corrosive stress1.0 dm3SO2on 300 dm3/40 °C/3 cycles
Thermal stress100 °C/168  h
Power-frequency withstand voltage1.39 kV
Shocks
SpecificationIEC 60068-2-27:2008-02
Pulse shapeSemi-sinusoidal
Acceleration30g
Shock duration18 ms
Test directionsX-, Y- and Z-axis (pos. and neg.)
Ambient conditions
Ambient temperature (operation)-40 °C ... 100 °C (dependent on the derating curve)
Ambient temperature (storage/transport)-40 °C ... 70 °C
Relative humidity (storage/transport)30 % ... 70 %
Ambient temperature (assembly)-5 °C ... 100 °C
Packaging specifications
Dimensional drawingckrmjeflhr.jpg
Type of packaging56 mm wide tape
[W] tape width56 mm
[W2] coil overall dimension62.4 mm
[A] coil diameter330 mm
Outer packaging typeTransparent-Bag
ESD level(D) electrostatically conductive
SpecificationDIN EN 61340-5-1 (VDE 0300-5-1): 2008-07

ETIM for 1832470 Connectors (EC002637)
Feature Name Feature Value
Connector model (EF007495) Fixed connector
Contact type (EF001587) Pin
Number of plug-in contact rows (EF006935) 1
Modular spacing contacts (EF007326) 3.5 mm
Modular spacing connections (EF006827) 3.5 mm
Rated current In (EF008250) 8 A
Rated voltage (EF000228) 160 V
Rated surge voltage (EF002993) 2.5 kV
Over voltage category (EF006785) III
Pollution degree (EF006786) 2
Material of contact surface (EF004020) Gold
Type of electric connection (EF003961) Other
Diameter connection pin (EF006823) 1.2 mm
Length pin (EF006825) 1.4 mm
Material insulation body (EF007543) Other
Housing colour (EF000136) Black
Inflammability class of insulation material according to UL94 (EF002521) V0
Operating temperature (EF002393) -40 °C
Type of fastening (EF002442) Other
Type of banding (EF007011) Other

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
