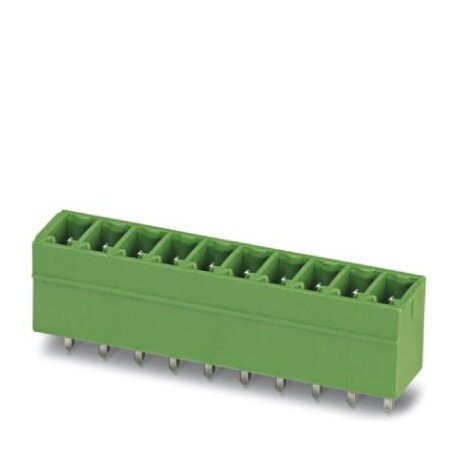

PHOENIX CONTACT MCV 1,5/16-G-3,81 GY MCV 1,5/16-G-3,81 GY 1714527 PHOENIX CONTACT PCB headers, nominal current: 8 A, rated voltage (III/2): 160 V.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

MCV 1,5/16-G-3,81 GY 1714527 PHOENIX CONTACT PCB headers, nominal current: 8 A, rated voltage (III/2): 160 V..

MCV 1,5/16-G-3,81 GY

1714527

PHOENIX CONTACT

50 Pcs.

PCB headers, nominal current: 8 A, rated voltage (III/2): 160 V, nominal cross section: 1.5 mm², number of positions: 16, pitch: 3.81 mm, color: gray, contact surface: Tin, mounting: Wave soldering, pin layout: Linear pinning, solder pin [P]: 3.4 mm Printed circuit board base case, nominal section: 1.5 mm², color: gray, nominal current: 8 A, nominal voltage (III/2): 160 V, contact surface: Tin, contact type: Male, number of rows: 1, number of poles: 16, article family: MCV 1.5/.. -G, pitch: 3.81 mm, mounting: Wave soldering, pin arrangement: Linear pin arrangement, pin length [P]: 3.4 mm, number of solder pins per potential: 1, plug-in system: COMBICON MC 1.5, Plug-in face orientation: Standard, lock: without, fixing type: without, packaging type: boxed

Connectors > Printed circuit board connector
PCB Connectors (PCC)

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

Key Commercial Data

Orderkey1714527
Packing unit1
GTIN4055626923079
Custom tariff number85366930

Drawings

Diagram

Diagram
Type: MC 1,5/...-ST-3,81 with MCV 1,5/...-G-3,81

Diagram

Diagram
Type: FRONT-MC 1,5/...-ST-3,81 with MCV 1,5/...-G-3,81

Diagram

Diagram
Type: FK-MCP 1,5/...-ST-3,81 with MCV 1,5/...-G-3,81

Diagram

Diagram
Type: FMC 1,5/...-ST-3,81 with MCV 1,5/...-G-3,81

Back to top

Item properties

Brief article descriptionFeed-through header
Plug-in systemMINI COMBICON
Type of contactMale connector
Range of articlesMCV 1,5/..-G
Pitch3.81 mm
Number of positions16
Mounting typeWave soldering
Pin layoutLinear pinning
Number of levels1
Back to top

Electrical parameters

Nom. voltage160 V
Back to top

Material data - contact

NoteWEEE/RoHS-compliant, free of whiskers according to IEC 60068-2-82/JEDEC JESD 201
Contact materialCu alloy
Surface characteristicsTin-plated
Metal surface contact area (top layer)Tin (3 - 5 µm Sn)
Metal surface contact area (middle layer)Nickel (1 - 3 µm Ni),
Metal surface soldering area (top layer)Tin (3 - 5 µm Sn)
Metal surface soldering area (middle layer)Nickel (1 - 3 µm Ni)
Back to top

Material data - housing

Insulating materialPBT
Insulating material groupIIIa
CTI according to IEC 60112225
Flammability rating according to UL 94V0
Back to top

Dimensions for the product

Dimensional drawing
Length [ l ]7.25 mm
Width [ w ]62.35 mm
Height [ h ]12.6 mm
Pitch3.81 mm
Height (without solder pin)9.2 mm
Solder pin [P]3.4 mm
Pin dimensions0.8 x 0.8 mm
Dimension a57.15 mm
Back to top

Dimensions for PCB design

Hole diameter1.2 mm
Back to top

Packaging information

Type of packagingpacked in cardboard
Pieces per package50
Denomination packing unitsPcs.
Back to top

Ambient conditions

Ambient temperature (storage/transport)-40 °C ... 70 °C
Ambient temperature (assembly)-5 °C ... 100 °C
Ambient temperature (operation)-40 °C ... 100 °C (dependent on the derating curve)
Back to top

Air clearances and creepage distances

Clearances and creepage distancesIEC 60664-1:2007-04
SpecificationIEC 60664-1:2007-04
Rated insulation voltage (III/3)160 V
Rated insulation voltage (III/2)160 V
Rated insulation voltage (II/2)250 V
Rated surge voltage (III/3)2.5 kV
Rated surge voltage (III/2)2.5 kV
Rated surge voltage (II/2)2.5 kV
Minimum clearance - inhomogeneous field (III/3)1.5 mm
Minimum clearance - inhomogeneous field (III/2)1.5 mm
Minimum clearance - inhomogeneous field (II/2)1.5 mm
Minimum creepage distance value (III/3)2.5 mm
Minimum creepage distance value (III/2)1.6 mm
Minimum creepage distance value (II/2)2.5 mm
Back to top

Mechanical tests (A)

Insertion strength per pos. approx.8 N
Withdraw strength per pos. approx.6 N
Polarization when inserted requirement >20 NTest passed
Contact holder in insert requirements >20 NTest passed
Back to top

Durability tests (B)

SpecificationIEC 60512-9-1:2010-03
Contact resistance R11.2 mΩ
Insertion/withdrawal cycles25
Contact resistance R21.2 mΩ
Impulse withstand voltage at sea level2.95 kV
Power-frequency withstand voltage1.39 kV
Insulation resistance, neighboring positions> 11 TΩ
Back to top

Climatic tests (D)

SpecificationISO 6988:1985-02
Cold stress-40 °C/2 h
Thermal stress100 °C/168 h
Corrosive stress0.2 dm3SO2on 300 dm3/40 °C/1 cycle
Impulse withstand voltage at sea level2.95 kV
Power-frequency withstand voltage1.39 kV
Back to top

Environmental and durability tests (E)

SpecificationIEC 61984:2008-10
Result, degree of protection, IP codeFinger safety with IP20 test finger
Back to top

Vibration test

SpecificationIEC 60068-2-6:2007-12
ResultTest passed
Frequency10 - 150 - 10 Hz
Sweep speed1 octave/min
Amplitude0.35 mm (10 - 60.1 Hz)
Acceleration5 g (60.1 - 150 Hz)
Test duration per axis2.5 h
Back to top

Classifications

eCl@ss

eCl@ss 8.027440402
eCl@ss 9.027440402
Back to top

ETIM

ETIM 5.0EC002637
ETIM 6.0EC002637
ETIM 7.0EC002637
