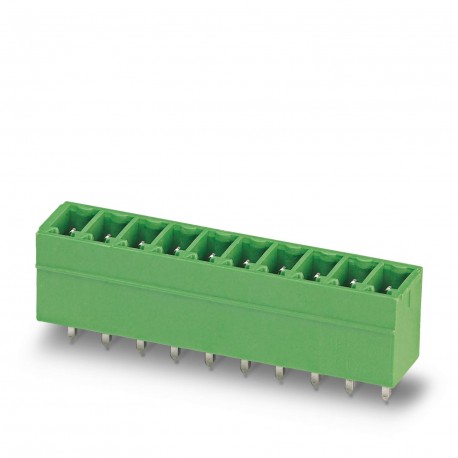

PHOENIX CONTACT MCV 1,5/12-G-3,5 P26 MCV 1,5/12-G-3,5 P26 1096426 PHOENIX CONTACT Housing base printed circuit board, number of poles: 12, pitch:.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

MCV 1,5/12-G-3,5 P26 1096426 PHOENIX CONTACT Housing base printed circuit board, number of poles: 12, pitch:..

MCV 1,5/12-G-3,5 P26

1096426

PHOENIX CONTACT

1 Pcs.


Connectors > Printed circuit board connector
PCB Connectors (PCC)

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲
Housing base printed circuit board, number of poles: 12, pitch: 3.5 mm, color: green

Printed circuit board base housing, nominal section: 1.5 mm², color: green, nominal current: 8 A, nominal voltage (III/2): 160 V, contact surface: Tin, contact type: Male, number of rows: 1, number of poles: 12, family of articles: MCV 1.5/.. -G, pitch: 3.5 mm, mounting: Wave soldering, pin arrangement: Linear pin arrangement, pin length [P]: 2.6 mm, number of solder pins per potential: 1, plug-in system: COMBICON MC 1.5, Plug-in face orientation: Standard, lock: without, fixing type: without, packaging type: boxed
