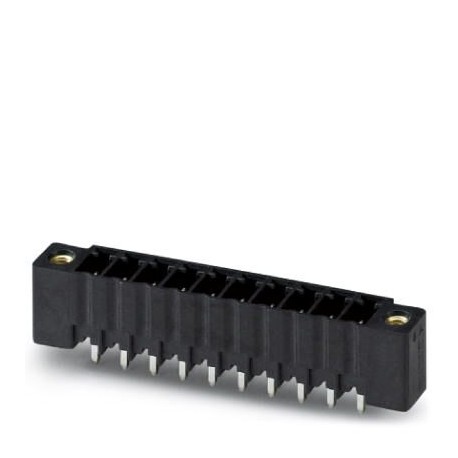

PHOENIX CONTACT MCV 1,5/10-GF-3,81P26AUTHRRNZ1 MCV 1,5/10-GF-3,81P26AUTHRRNZ1 1798883 PHOENIX CONTACT Housing base printed circuit board, nominal current: .. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

MCV 1,5/10-GF-3,81P26AUTHRRNZ1 1798883 PHOENIX CONTACT Housing base printed circuit board, nominal current: ..

MCV 1,5/10-GF-3,81P26AUTHRRNZ1

1798883

PHOENIX CONTACT

200 Pcs.

Housing base printed circuit board, nominal current: 8 A, voltage and sizing (III/2): 160 V, number of poles: 10, pitch: 3,81 mm, color: black, surface contacts: Gold, assembly: Soldering THR Printed circuit board base housing, nominal section: 1.5 mm², color: black, nominal current: 8 A, nominal voltage (III/2): 160 V, contact surface: Gold, contact type: Male, number of potentials: 10, number of rows: 1, number of poles: 10, number of connections: 10, article family: MCV 1.5/.. -GF-THR, pitch: 3.81 mm, mounting: Weld THR, pin arrangement: Linear pin arrangement, pin length [P]: 2.6 mm, number of solder pins per potential: 1, plug-in system: COMBICON MC 1.5, Plug-in face orientation: Standard, lock: Screw lock, fixing type: Air clamping (thread), packaging type: 72 mm wide strap PCB headers, nominal current: 8 A, nominal cross section: 1.5 mm², number of positions: 10, pitch: 3.81 mm, color: black, contact surface: Gold, mounting: THR soldering, pin layout: Linear pinning, solder pin [P]: 2.6 mm

Connectors > Printed circuit board connector
PCB Connectors (PCC)

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

Key Commercial Data

Orderkey1798883
Packing unit1 pc
Minimum order quantity200 pc
GTIN4046356655132
Weight per Piece (excluding packing)1.320 g
Custom tariff number85366930
Country of originDE (Germany)

Drawings

Drilling diagram

Drilling diagram

Dimensional drawing

Dimensional drawing

Back to top

Item properties

Brief article descriptionFeed-through header
Plug-in systemMINI COMBICON
Type of contactMale connector
Range of articlesMCV 1,5/..-GF-THR
Pitch3.81 mm
Number of positions10
Mounting typeTHR soldering
Pin layoutLinear pinning
LockingThreaded flange
Number of levels1
Number of connections10
Number of potentials10
Back to top

Electrical parameters

Nominal current8 A
Nom. voltage
Rated voltage160 V
Back to top

Material data - contact

NoteWEEE/RoHS-compliant, free of whiskers according to IEC 60068-2-82/JEDEC JESD 201
Contact materialCu alloy
Surface characteristicspartially gold-plated
Metal surface contact area (top layer)Gold (0.8 - 1.4 µm Au)
Metal surface contact area (middle layer)Nickel (1.3 - 3 µm Ni),
Metal surface soldering area (top layer)Tin (5 - 7 µm Sn)
Metal surface soldering area (middle layer)Nickel (1.3 - 3 µm Ni)
Back to top

Material data - housing

Housing colorblack (9005)
Insulating materialLCP
Insulating material groupIIIa
CTI according to IEC 60112175
Flammability rating according to UL 94V0
Back to top

Dimensions for the product

Length [ l ]7.25 mm
Width [ w ]48.49 mm
Height [ h ]11.8 mm
Pitch3.81 mm
Height (without solder pin)9.2 mm
Solder pin [P]2.6 mm
Dimension a34.29 mm
Back to top

Dimensions for PCB design

Hole diameter1.4 mm
Back to top

Packaging information

Dimensional drawing
Type of packagingpacked in cardboard
Pieces per package200
Denomination packing unitsPcs.
[W] tape width32 mm
[A] coil diameter330 mm
[W2] coil overall dimension38.4 mm
Outer packaging type
Back to top

Processing notes

Moisture Sensitive LevelMSL 1
Classification temperature Tc245 °C
Solder cycles in the reflow3
Back to top

Standards and Regulations

Connection in acc. with standardEN-VDE
CUL
Flammability rating according to UL 94V0
Back to top

Environmental Product Compliance

REACh SVHCLead 7439-92-1
China RoHSEnvironmentally Friendly Use Period = 50 years
For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration”
Back to top

Classifications

eCl@ss

eCl@ss 4.027260700
eCl@ss 4.127260700
eCl@ss 5.027260700
eCl@ss 5.127260700
eCl@ss 6.027260700
eCl@ss 7.027440402
eCl@ss 8.027440402
eCl@ss 9.027440402
Back to top

ETIM

ETIM 4.0EC002637
ETIM 5.0EC002637
ETIM 6.0EC002637
ETIM 7.0EC002637
Back to top

UNSPSC

UNSPSC 6.0130211810
UNSPSC 7.090139121409
UNSPSC 1139121409
UNSPSC 12.0139121409
UNSPSC 13.239121409
UNSPSC 18.039121409
UNSPSC 19.039121409
UNSPSC 20.039121409
UNSPSC 21.039121409
Back to top

ETIM for 1798883 Connectors (EC002637)
Feature Name Feature Value
Connector model (EF007495) Fixed connector
Contact type (EF001587) Pin
Number of poles (EF001391) 10
Number of plug-in contact rows (EF006935) 1
Modular spacing contacts (EF007326) 3.81 mm
Modular spacing connections (EF006827) 3.81 mm
Rated current In (EF008250) 8 A
Rated voltage (EF000228) 160 V
Rated surge voltage (EF002993) 2.5 kV
Over voltage category (EF006785) III
Pollution degree (EF006786) 2
Material of contact surface (EF004020) Gold
Type of electric connection (EF003961) Other
Diameter connection pin (EF006823) 1.4 mm
Length pin (EF006825) 2.6 mm
Material insulation body (EF007543) Other
Housing colour (EF000136) Black
Inflammability class of insulation material according to UL94 (EF002521) V0
Operating temperature (EF002393) -40 °C
Type of fastening (EF002442) Other
Type of banding (EF007011) Other
