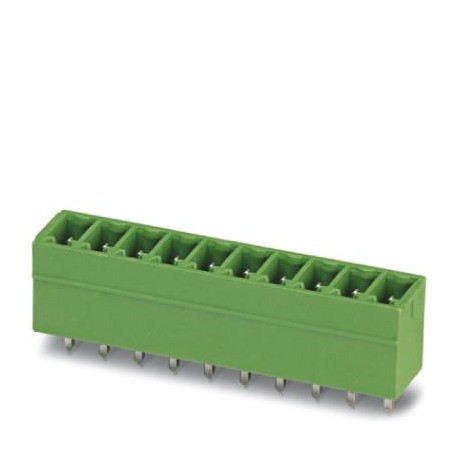

PHOENIX CONTACT MCV 1,5/10-G-3,5 YE MCV 1,5/10-G-3,5 YE 1713148 PHOENIX CONTACT Feed-through header View larger
Images are for illustrative purposes only. Please refer to data sheet for details

MCV 1,5/10-G-3,5 YE 1713148 PHOENIX CONTACT Feed-through header

MCV 1,5/10-G-3,5 YE

1713148

PHOENIX CONTACT

100 Pcs.

Feed-through header Printed circuit board base housing, nominal section: 1.5 mm², color: yellow, nominal current: 8 A, contact surface: Sn, contact connection type: Male, number of potentials: 10, number of rows: 1, number of poles: 10, number of connections: 10, family of articles: MCV 1.5/.. -G, pitch: 3.5 mm, mounting: Wave soldering, pin arrangement: Linear pin arrangement, pin length [P]: 3.4 mm, number of solder pins per potential: 1, plug-in system: COMBICON MC 1.5, Plug-in face orientation: Standard, locking: without, packaging type: boxed

Connectors > Printed circuit board connector
PCB Connectors (PCC)

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

Key Commercial Data

Orderkey1713148
Packing unit1
GTIN4055626305875
Custom tariff number85366930

Dimensions

Length [ l ]7.25 mm
Width36.4 mm
Pitch3.5 mm
Dimension a31.5 mm
Width [ w ]36.4 mm
Height [ h ]12.6 mm
Height9.2 mm
Length of the solder pin3.4 mm
Pin dimensions0.8 x 0.8 mm
Length7.25 mm

General

Range of articlesMCV 1,5/..-G
Rated voltage (III/2)160 V
Nominal current IN8 A
Coloryellow
Number of positions10

Environmental Product Compliance

China RoHSEnvironmentally friendly use period: unlimited = EFUP-e
No hazardous substances above threshold values

Classifications


ETIM for 1713148 Connectors (EC002637)
Feature Name Feature Value
Connector model (EF007495) Fixed connector
Contact type (EF001587) Pin
Number of poles (EF001391) 10
Number of plug-in contact rows (EF006935) 1
Modular spacing contacts (EF007326) 3.5 mm
Modular spacing connections (EF006827) 3.5 mm
Rated current In (EF008250) 8 A
Over voltage category (EF006785) III
Pollution degree (EF006786) 2
Material of contact surface (EF004020) Tin
Type of electric connection (EF003961) Other
Diameter connection pin (EF006823) 1.2 mm
Length pin (EF006825) 3.4 mm
Material insulation body (EF007543) Other
Housing colour (EF000136) Yellow
Inflammability class of insulation material according to UL94 (EF002521) V0
Operating temperature (EF002393) -40 °C
Type of banding (EF007011) Carton (for SMD)

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
