View larger
Images are for illustrative purposes only. Please refer to data sheet for details

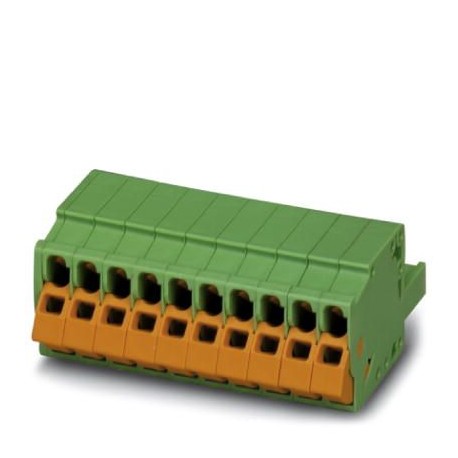

QC 1,5/ 9-ST CP3 1713337 PHOENIX CONTACT Plug
QC 1,5/ 9-ST CP3
1713337
PHOENIX CONTACT
50 Pcs.
Plug
Connector for printed circuit board, nominal section: 1.5 mm², color: green, nominal current: 12 A, dimensioning voltage (III/2): 630 V, contact surface: Tin, contact type: Connection female, Number of rows: 1, Number of poles per row: 9, article family: QC 1.5/.. -ST, pitch: 5 mm, connection type: Offset connection, conductor/printed circuit board connection direction: 0 °, Stecksystem: CLASSIC COMBICON, Lock: without, packaging type: boxed
Cables > Cable connector
PCB Connectors (PCC)
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲General
| Range of articles | QC 1,5/..-ST |
|---|---|
| Number of positions | 9 |
| Connection method | Displacement connection |
| Insulating material group | I |
| Nominal current IN | 12 A |
| Nominal cross section | 1.5 mm² |
| Flammability rating according to UL 94 | V0 |
Environmental Product Compliance
| China RoHS | Environmentally friendly use period: unlimited = EFUP-e |
|---|---|
| No hazardous substances above threshold values |
