View larger
Images are for illustrative purposes only. Please refer to data sheet for details

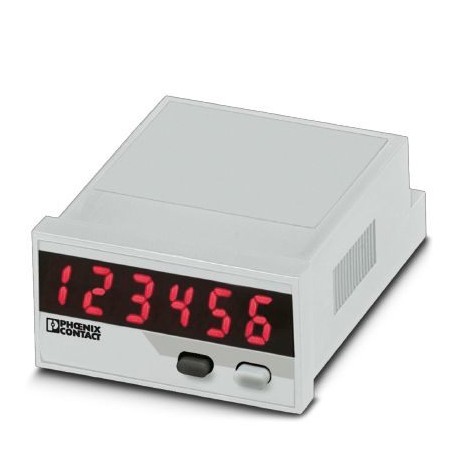

MCR-SL-D-FIT 2864024 PHOENIX CONTACT Digital display
MCR-SL-D-FIT
2864024
PHOENIX CONTACT
1 Pcs.
Digital display
MCR digital display, for measuring and displaying frequencies, pulses and times, 6-digit display
Automation > Accessories/spare parts for HVAC sensors
INTERFACE Components (IF)
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Key Commercial Data
| Orderkey | 2864024 |
|---|---|
| Packing unit | 1 pc |
| Catalog page | Page 185 (C-5-2017) |
| GTIN | 4017918976477 |
| Weight per Piece (excluding packing) | 92.600 g |
| Custom tariff number | 90291000 |
| Country of origin | DE (Germany) |
Ambient conditions
| Ambient temperature (operation) | -20 °C ... 65 °C |
|---|---|
| Ambient temperature (storage/transport) | -25 °C ... 70 °C |
| Degree of protection | IP65 from the front |
Switching output
| Output name | 1 NPN optocoupler |
|---|---|
| Maximum switching voltage | 30 V DC |
| Max. switching current | 10 mA |
General
| Noise emission | EN 55011 / class B |
|---|---|
| Noise immunity | EN 61000-6-2 |
| Color | gray |
| Housing material | Macrolon 2405 |
| Conformance | CE-compliant |
| UL, USA/Canada | UL 863 |
Standards and Regulations
| Noise emission | EN 55011 / class B |
|---|---|
| Noise immunity | EN 61000-6-2 |
| EN 61000-4-2 | |
| Connection in acc. with standard | CUL |
| Conformance | CE-compliant |
| UL, USA/Canada | UL 863 |
Environmental Product Compliance
| China RoHS | Environmentally friendly use period: unlimited = EFUP-e |
|---|---|
| No hazardous substances above threshold values |
