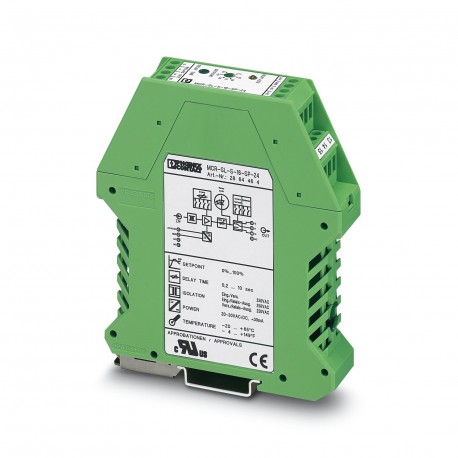

MCR-SL-S- 16-SP- 24 2864464 PHOENIX CONTACT Current monitoring

MCR-SL-S-16-SP-24

2864464

PHOENIX CONTACT

1 Pcs.

Current monitoring MCR current controller, for sine idle alternating currents 0 ... 16 A AC/ 1 switched contact

Automation > Current value transformer
INTERFACE Components (IF)

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

Key Commercial Data

Orderkey2864464
Packing unit1 pc
Catalog pagePage 249 (C-5-2017)
GTIN4017918904456
Weight per Piece (excluding packing)139.200 g
Custom tariff number85389091
Country of originDE (Germany)

Note

Utilization restrictionEMC: class A product, see manufacturer's declaration in the download area

Dimensions

Width22.5 mm
Height99 mm
Depth114.5 mm

Ambient conditions

Ambient temperature (operation)-20 °C ... 65 °C
Ambient temperature (storage/transport)-40 °C ... 85 °C (non-condensing)
Maximum altitude≤ 2000 m

Input data

InputCurrent measuring input
Input current range0 A AC ... 16 A
Impulse formSine
Overload capacity2 x IN (continuous)
Nominal frequency fN50 Hz
60 Hz
Frequency measuring range45 Hz ... 65 Hz

Switching output

Output nameRelay output
Contact type1 PDT
Contact materialAgSnO, hard gold-plated
Maximum switching voltage30 V AC
36 V DC
250 V AC (when the gold layer is destroyed)
Limiting continuous current50 mA (for gold layer, 30 V AC/ 36 V DC)
2 A (in case of a destroyed gold layer, 250 V AC)
Setting range of the response delaytyp. 0.1 s ... 10 s (Adjustable using a potentiometer)

Power supply

Supply voltage range20 V DC ... 30 V DC
Max. current consumption< 30 mA

Connection data

Connection methodScrew connection
Conductor cross section solid min.0.2 mm²
Conductor cross section solid max.2.5 mm²
Conductor cross section AWG min.24
Conductor cross section AWG max.14
Conductor cross section flexible min.0.2 mm²
Conductor cross section flexible max.2.5 mm²
Stripping length8 mm
Screw threadM3

General

Maximum temperature coefficient< 0.02 %/K
Step response (10-90%)40 ms
Overvoltage categoryIII
Degree of pollution2
Rated insulation voltage300 V AC (to earth)
Test voltage input/output3.5 kV (50 Hz, 1 min.)
Test voltage input/power supply3.5 kV (50 Hz, 1 min.)
Electromagnetic compatibilityConformance with EMC directive
Noise emissionEN 61000-6-4
Noise immunityEN 61000-6-2 When being exposed to interference, there may be minimal deviations.
Colorgreen
Housing materialPolyamide PA non-reinforced
Mounting positionany
ConformanceCE-compliant

Standards and Regulations

Electromagnetic compatibilityConformance with EMC directive
Noise emissionEN 61000-6-4
Connection in acc. with standardCUL
ConformanceCE-compliant

Environmental Product Compliance

China RoHSEnvironmentally Friendly Use Period = 50
For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration”

Classifications


ETIM for 2864464 Sensors (EC002475)
Feature Name Feature Value
Initial value measuring range current (EF008198) 0 A
End value measuring range current (EF008266) 16 A
Frequency rated current (EF005737) 50 Hz
Integrated configuration function (EF003064) No
With switching output (EF005225) No

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
