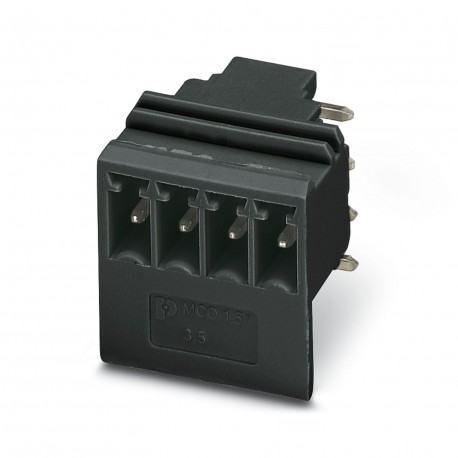

PHOENIX CONTACT MCO 1,5/ 4-G1R-3,5 BK MCO 1,5/ 4-G1R-3,5 BK 2200047 PHOENIX CONTACT Printed-circuit board connector View larger
Images are for illustrative purposes only. Please refer to data sheet for details

MCO 1,5/ 4-G1R-3,5 BK 2200047 PHOENIX CONTACT Printed-circuit board connector

MCO 1,5/ 4-G1R-3,5 BK

2200047

PHOENIX CONTACT

1 Pcs.

Printed-circuit board connector Printed circuit board base housing, nominal section: 1.5 mm², color: black, nominal current: 8 A, nominal voltage (III/2): 160 V, contact type: Male, number of potentials: 4, number of rows: 1, number of poles: 4, number of connections: 4, family of articles: MCO 1.5/.. -G1R, pitch: 3.5mm, mounting: Wave welding, pin arrangement: Linear pin arrangement, pin length [P]: 2.75mm, locking: without, packaging type: boxed, Item with side pin output on the right PCB base socket, nominal cross-section: 1.5 mm2, colour: black, rated current: 8 A, dimensioning voltage (III/2): 160 V, contact surface: Sn, contact connection type: plug, number of potentials: 4, number of rows: 1, number of poles: 4, number of connections: 4, product series: MCO 1.5/.. -G1R, pitch: 3.5 mm, mounting: Wave soldering, pin layout: Linear pinning, pin length [P]: 2.75 mm, pin system: COMBICON MC 1.5, Insertion pin orientation: Orthogonal, locking: none, package type: packed in carton, Item with right side pin exit

Connectors > Printed circuit board connector
Housing (HS)

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
