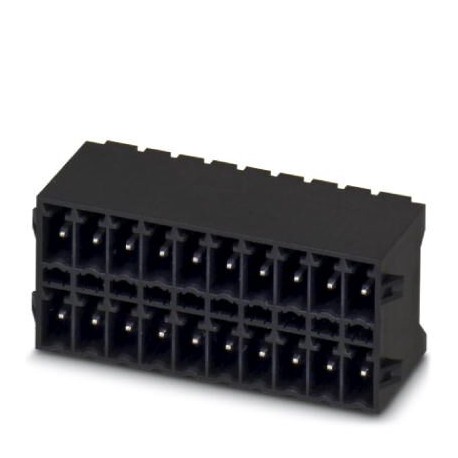

PHOENIX CONTACT MCDN 1,5/ 8-G1-3,5RNP26THRR56 MCDN 1,5/ 8-G1-3,5RNP26THRR56 1790755 PHOENIX CONTACT Housing base printed circuit board, nominal current: 8.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

MCDN 1,5/ 8-G1-3,5RNP26THRR56 1790755 PHOENIX CONTACT Housing base printed circuit board, nominal current: 8..

MCDN 1,5/ 8-G1-3,5RNP26THRR56

1790755

PHOENIX CONTACT

110 Pcs.

Housing base printed circuit board, nominal current: 8 A, voltage and sizing (III/2): 160 V, number of poles: 8, pitch: 3.5 mm, color: black, surface of contact: Tin, assembly: Soldering THR Printed circuit board base housing, nominal section: 1.5 mm², color: black, nominal current: 8 A, nominal voltage (III/2): 160 V, contact surface: Tin, contact type: Male, number of potentials: 16, number of rows: 2, number of poles: 8, number of connections: 16, family of articles: MCDN 1.5/.. -G1-RN-THR, pitch: 3.5 mm, mounting: Weld THR, pin arrangement: Linear pin arrangement, pin length [P]: 2.6 mm, number of solder pins per potential: 1, plug-in system: COMBICON MC 1.5, Plug-in face orientation: Standard, lock: Snap-in lock, fixing type: Snap-on protrusion, packing type: 56 mm wide strap

Connectors > Printed circuit board connector
PCB Connectors (PCC)

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

Housing base printed circuit board, nominal current: 8 A, voltage and sizing (III/2): 160 V, number of poles: 8, pitch: 3.5 mm, color: black, surface of contact: Tin, assembly: Soldering THR

Data commercial

Key orderOne million seven hundred ninety thousand seven hundred fifty five
Packing unit110 pcs
Key sellingAAAEFB -
Minimum order quantity110 pcs
EANFour trillion forty six billion three hundred fifty six million six hundred twenty one thousand seventy six
Unit weight (excluding packaging)9,754 g
Tariff number tariffEighty five million three hundred sixty six thousand nine hundred ninety
Country of originBG (Bulgaria)

Dimensions

Length [ l ]13,3 mm
Width31.7 mm
Step3.5 mm
Average24,5 mm
Width [ w ]31.7 mm
Height [ h ]17.8 mm
Height of construction15.2 mm
Length of the pin welding2.6 mm
Separation between rods3,50 mm
Length13,3 mm

Overview

Family of articlesMCDN 1,5/..-G1-RN-THR
Tension and sizing (III/3)160 V
Connection according to standardEN-VDE
Nominal current IN8 To
Colorblack
Number of polesEight

Standards and specifications

Connection according to standardEN-VDE
CUL

Environmental Product Compliance

China RoHSSpace of time for the intended use: unlimited = FEUP-e
No dangerous substances above the thresholds

Ratings

eCl@ss

eCl@ss 4.0272607xx
eCl@ss 4.1Twenty seven million two hundred sixty thousand seven hundred one
eCl@ss 5.0Twenty seven million two hundred sixty thousand seven hundred one
eCl@ss 5.1Twenty seven million two hundred sixty thousand seven hundred
eCl@ss 6.0Twenty seven million two hundred sixty thousand seven hundred
eCl@ss 7.0Twenty seven million four hundred forty thousand four hundred two
eCl@ss 8.0Twenty seven million four hundred forty thousand four hundred two
eCl@ss 9.0Twenty seven million four hundred forty thousand four hundred two

ETIM

ETIM 4.0EC002637
ETIM 5.0EC002637
ETIM 6.0EC002637
ETIM 7.0EC002637

UNSPSC

UNSPSC 6.01Thirty million two hundred eleven thousand eight hundred ten
UNSPSC 7.0901Thirty nine million one hundred twenty one thousand four hundred nine
UNSPSC 11Thirty nine million one hundred twenty one thousand four hundred nine
UNSPSC 12.01Thirty nine million one hundred twenty one thousand four hundred nine
UNSPSC 13.2Thirty nine million one hundred twenty one thousand four hundred nine

ETIM for 1790755 Connectors (EC002637)
Feature Name Feature Value
Connector model (EF007495) Fixed connector
Contact type (EF001587) Pin
Number of poles (EF001391) 16
Number of plug-in contact rows (EF006935) 2
Modular spacing contacts (EF007326) 3.5 mm
Modular spacing connections (EF006827) 3.5 mm
Rated current In (EF008250) 8 A
Rated voltage (EF000228) 160 V
Rated surge voltage (EF002993) 2.5 kV
Over voltage category (EF006785) III
Pollution degree (EF006786) 2
Material of contact surface (EF004020) Tin
Type of electric connection (EF003961) Other
Diameter connection pin (EF006823) 1.4 mm
Length pin (EF006825) 2.6 mm
Material insulation body (EF007543) Other
Housing colour (EF000136) Black
Inflammability class of insulation material according to UL94 (EF002521) V0
Operating temperature (EF002393) -40 °C
Type of fastening (EF002442) Other
Type of banding (EF007011) Other
