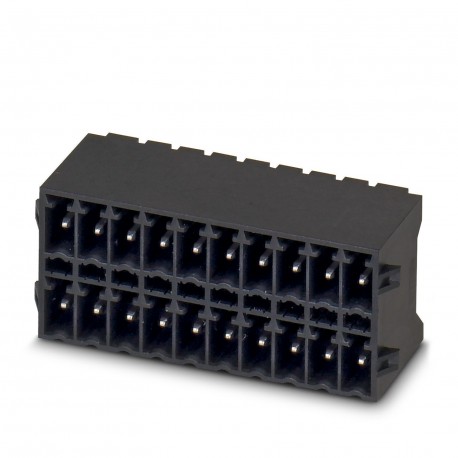

PHOENIX CONTACT MCDN 1,5/ 7-G1-3,5 RNP26THRR56 MCDN 1,5/ 7-G1-3,5 RNP26THRR56 1094466 PHOENIX CONTACT Housing base printed circuit board, nominal current: .. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

MCDN 1,5/ 7-G1-3,5 RNP26THRR56 1094466 PHOENIX CONTACT Housing base printed circuit board, nominal current: ..

MCDN 1,5/ 7-G1-3,5 RNP26THRR56

1094466

PHOENIX CONTACT

990 Pcs.

Housing base printed circuit board, nominal current: 8 A, number of poles: 7, pitch: 3.5 mm, color: black, surface of contact: Tin, assembly: Soldering THR Base housing printed circuit board, nominal section: 1.5 mm², color: black, rated current: 8 A, sizing voltage (III/2): 160 V, surface contacts: Tin, contact type: Male, Number of potentials: 14, Number of rows: 2,Number of poles per row: 7, number of connections: 14, article family: MCDN 1.5/.. -G1-RN-THR, pitch: 3.5 mm, mounting: THR welding, pin arrangement: Linear pin arrangement, pin length [P]: 2.6 mm, Stecksystem: MINI COMBICON, Locking: Lace lock, packing type: 56 mm wide strap PCB header, nominal cross-section: 1.5 mm2, colour: black, nominal current: 8 A, reference voltage (III/2): 160 V, contact area: Sn, contact type: Male, number of potentials: 14, number of rows: 2, number of poles: 7, number of connections: 14, article range: MCDN 1.5/.. -G1-RN-THR, pitch: 3.5 mm, mounting: THR welding / Wave welding, spindle plane: Linear pinout, spindle length [P]: 2.6 mm, number of pins per potential: 1, Plug-in system: COMBICON FMC 1.5 - MCDN 1.5, Orientation of the plug-in pattern: Standard, Locking: Snap-lock, Fastening type: Stop, Packaging type: Strap in width of 56 mm

Connectors > Printed circuit board connector
PCB Connectors (PCC)

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲
Product TypePCB header
Product rangeMCDN 1.5/.. -G1-RN-THR
Product LineCOMBICON Connectors S
Number of poles7
Steps3.5 mm
Number of connections14
Number of rows2
Number of potentials14
Mounting FlangeSwitchblade
Pinout plotLinear pinout
Number of pins per potential1
Data Management Status
Revision of the article00
Rated Current IN8 A
Rated voltage UN160 V
Contact resistance2.1 mΩ
Reference voltage (III/3)160 V
Rated Shock Resistance Voltage (III/3)2.5 kV
Rated Voltage (III/2)160 V
Rated Shock Withstand Voltage (III/2)2.5 kV
Reference voltage (II/2)250 V
Rated Shock Withstand Voltage (II/2)2.5 kV
Mounting TypeTHR Welding / Wave Welding
Pinout plotLinear pinout
Treatment advice
ProcessReflow/wave soldering
Moisture Sensitive LevelMSL 1
Temperature classification Tc260 °C
Reflow Soldering Cycles3
Material indication - contact
NoteWEEE/RoHS compliant, trichite-free according to IEC 60068-2-82/JEDEC JESD 201
Contact materialCu Alloy
Surface qualityGalvanic tinning
Metal surface, contact area (top layer)Tin (3 - 5 μm Sn)
Metal surface, contact area (middle layer)Nickel (1 - 3 μm Ni)
Metal surface, welding area (top layer)Tin (3 - 5 μm Sn)
Metal surface, welding area (middle layer)Nickel (1 - 3 μm Ni)
Material indication - housing
Colors (Cases)Black (9005)
Insulating materialLCP
Insulation GroupIIIa
CRI according to IEC 60112175
Flammability class according to UL 94V0
Welding Process InformationProcessing in reflow processes according to IEC 60068-2-58 or DIN EN 61760-1 (current versions)
Moisture Sensitive Level (MSL) = 1 according to IPC/JEDEC J-STD-020-C
Dimensioned drawing
Steps3.5 mm
Width [w]28.2 mm
Height [h]17.6 mm
Length [l]13.3 mm
Mounting height15.2 mm
Welding pin length [P]2.6 mm
Dimensions of the pins0.8 x 0.8 mm
PCB design
Pimple spacing3.50 mm
Drilling Diameter1.4 mm
Visual inspection
Control SpecificationDIN EN 60512-1-1:2003-01
ResultSuccessful test
Dimension control
Control SpecificationDIN EN 60512-1-2:2003-01
ResultSuccessful test
Resistance of inscriptions
Control SpecificationDIN EN 60068-2-70:1996-07
ResultSuccessful test
Polarization and keying
Control SpecificationDIN EN 60512-13-5:2006-11
ResultSuccessful test
Using contact holders
Control SpecificationDIN EN 60512-15-1:2009-03
Contact holder used
Requirement >20 N		Successful test
Plug-in and Shrink Forces
ResultSuccessful test
Number of cycles25
Approx. mating force per pole8 N
Removal force per pole approx.6 N
Thermal Testing Test Group C
Control SpecificationDIN EN 60512-5-1:2003-01
Number of poles tested20
Insulation resistance
Control SpecificationDIN EN 60512-3-1:2003-01
Insulation resistance of neighboring poles> 5 MΩ
Air Distances and Trailing Lines
Control SpecificationDIN EN 60664-1 (VDE 0110-1):2008-01
Insulation GroupIIIa
Resistance to leakage currents (DIN EN 60112 (VDE 0303-11))SIC 175
Rated Insulation Voltage (III/3)160 V
Rated Shock Resistance Voltage (III/3)2.5 kV
minimum value of distance in air - non-homogeneous field (III/3)1.5 mm
minimum creepage value (III/3)2.5 mm
Rated Insulation Voltage (III/2)160 V
Rated Shock Voltage (III/2)2.5 kV
minimum value of distance in air - non-homogeneous field (III/2)1.5 mm
minimum creepage value (III/2)1.6 mm
Rated Insulation Voltage (II/2)250 V
Rated Shock Withstand Voltage (II/2)2.5 kV
minimum value of distance in air - non-homogeneous field (II/2)1.5 mm
minimum creepage value (II/2)2.5 mm
Vibration Resistance Test
Control SpecificationDIN EN 60068-2-6 (VDE 0468-2-6):2008-10
Frequency10 - 150 - 10 Hz
Scan Speed1 octave/min
Amplitude0.35 mm (10 Hz ... 60.1 Hz)
Acceleration5g (60.1 Hz ... 150 Hz)
Inspection time per axis2.5 hrs
Sense of controlX, Y, and Z Axes
Lifetime test
Control SpecificationDIN EN 60512-9-1 (VDE 0687-512-9-1):2010-12
Shock Resistance Voltage at Sea Level2.95 kV
Passage resistance R12.1 mΩ
Passage resistance R22.4 mΩ
Number of mating cycles25
Insulation resistance of neighboring poles> 5 MΩ
Climate control
Control SpecificationDIN EN ISO 6988:1997-03
Corrosion susceptibility0.2 dm3SO2about 300 dm3/40 °C/1 cycle
Heat sensitivity100 °C/168 h
Alternating current withstand voltage1.39 kV
Environmental conditions
Ambient Temperature (Operating)-40 °C ... 100 °C (depending on the derating curve)
Ambient temperature (storage/transport)-40 °C ... 70 °C
Relative humidity of the air (storage/transport)30 % ... 70 %
Ambient temperature (mounting)-5 °C ... 100 °C
Dimensioned drawing
Type of packaging56 mm wide strap
Ribbon Width [W]56 mm
Coil Outer Dimension [W2]62.4 mm
Coil Diameter [A]330 mm
Reconditioning TypeTransparent bag
ESD - Level(D) Electrostatic conduction
Control SpecificationDIN EN 61340-5-1 (VDE 0300-5-1): 2008-07

ETIM for 1094466 Connectors (EC002637)
Feature Name Feature Value
Connector model (EF007495) Fixed connector
Contact type (EF001587) Pin
Number of poles (EF001391) 14
Number of plug-in contact rows (EF006935) 2
Modular spacing contacts (EF007326) 3.5 mm
Modular spacing connections (EF006827) 3.5 mm
Rated current In (EF008250) 8 A
Rated voltage (EF000228) 160 V
Rated surge voltage (EF002993) 2.5 kV
Over voltage category (EF006785) III
Pollution degree (EF006786) 2
Material of contact surface (EF004020) Tin
Type of electric connection (EF003961) Other
Diameter connection pin (EF006823) 1.4 mm
Length pin (EF006825) 2.6 mm
Material insulation body (EF007543) Other
Housing colour (EF000136) Black
Inflammability class of insulation material according to UL94 (EF002521) V0
Operating temperature (EF002393) -40 °C
Type of fastening (EF002442) Other
Type of banding (EF007011) Other

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
