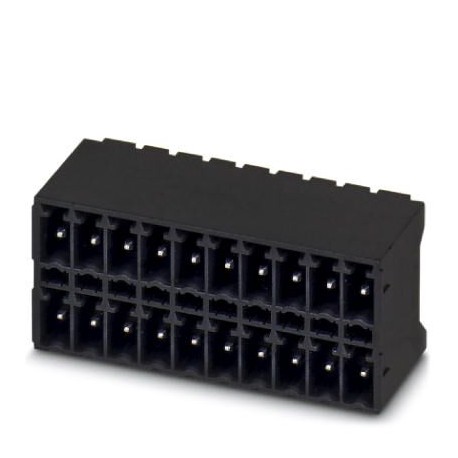

PHOENIX CONTACT MCDN 1,5/14-G1-3,5 RNP2THRTRAY MCDN 1,5/14-G1-3,5 RNP2THRTRAY 1766051 PHOENIX CONTACT Housing base for printed circuit board, nominal curre.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

MCDN 1,5/14-G1-3,5 RNP2THRTRAY 1766051 PHOENIX CONTACT Housing base for printed circuit board, nominal curre..

MCDN 1,5/14-G1-3,5 RNP2THRTRAY

1766051

PHOENIX CONTACT

1 Pcs.


Connectors > Printed circuit board connector
PCB Connectors (PCC)

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲
Housing base for printed circuit board, nominal current: 8 A, number of poles: 14, pitch: 3.5 mm, color: black, surface of contact: Tin, assembly: Soldering THR

Printed circuit board base housing, nominal section: 1.5 mm², color: black, nominal current: 8 A, nominal voltage (III/2): 160 V, contact surface: Tin, contact type: Male, number of potentials: 28, number of rows: 2, number of poles: 14, number of connections: 28, family of articles: MCDN 1.5/.. -G1-RN-THR, pitch: 3.5 mm, mounting: Solder THR, pin arrangement: Linear pin arrangement, pin length [P]: 2 mm, number of solder pins per potential: 1, plug-in system: COMBICON MC 1.5, Plug-in face orientation: Standard, lock: without, fixing type: without, packaging type: boxed
