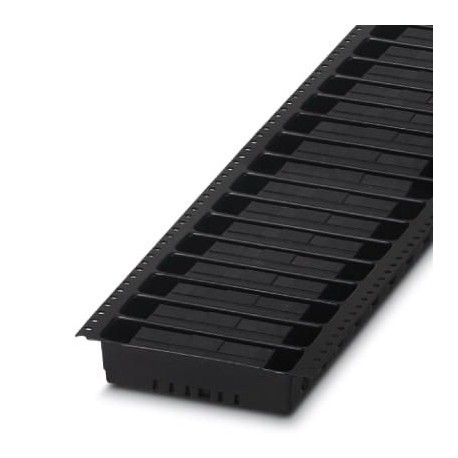

MC 1,5/ 6-G-3,5-RN P26THTR44 1786798 PHOENIX CONTACT Feed-through header
MC 1,5/ 6-G-3,5-RN P26THTR44
1786798
PHOENIX CONTACT
330 Pcs.
Feed-through header
Printed circuit board base case, color: black, contact surface: Tin, number of poles: 6, article family: MC 1.5/.. -G-RN, pitch: 3.5mm, pin arrangement: Linear pin arrangement, pin length [P]: 2.6mm, packing type: 44mm wide strap
Connectors > Printed circuit board connector
PCB Connectors (PCC)
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Dimensions
| Length [ l ] | 9.2 mm |
|---|---|
| Width | 24.6 mm |
| Pitch | 3.5 mm |
| Dimension a | 17.5 mm |
| Width [ w ] | 24.6 mm |
| Height [ h ] | 9.85 mm |
| Height | 7.25 mm |
| Length of the solder pin | 2.6 mm |
| Length | 9.2 mm |
General
| Range of articles | MC 1,5/..-G-RN |
|---|---|
| Insulating material group | IIIa |
| Rated surge voltage (III/3) | 2.5 kV |
| Rated surge voltage (III/2) | 2.5 kV |
| Rated surge voltage (II/2) | 2.5 kV |
| Rated voltage (III/3) | 160 V |
| Rated voltage (III/2) | 160 V |
| Rated voltage (II/2) | 250 V |
| Connection in acc. with standard | EN-VDE |
| Nominal current IN | 8 A |
| Maximum load current | 8 A |
| Insulating material | PA-GF |
| Flammability rating according to UL 94 | V0 |
| Color | black |
| Number of positions | 6 |
Standards and Regulations
| Connection in acc. with standard | EN-VDE |
|---|---|
| Flammability rating according to UL 94 | V0 |
Environmental Product Compliance
| China RoHS | Environmentally friendly use period: unlimited = EFUP-e |
|---|---|
| No hazardous substances above threshold values |
