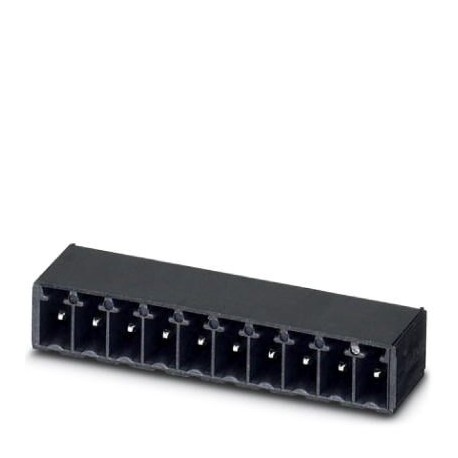

PHOENIX CONTACT MC 1,5/ 5-G-3,5 P26 AU THR MC 1,5/ 5-G-3,5 P26 AU THR 1050082 PHOENIX CONTACT Feed-through header MC 1,5/ 5-G-3,5 P26 AU THR 1050082 View larger
Images are for illustrative purposes only. Please refer to data sheet for details

MC 1,5/ 5-G-3,5 P26 AU THR 1050082 PHOENIX CONTACT Feed-through header MC 1,5/ 5-G-3,5 P26 AU THR 1050082

MC 1,5/ 5-G-3,5 P26 AU THR

1050082

PHOENIX CONTACT

50 Pcs.

Feed-through header - MC 1,5/ 5-G-3,5 P26 AU THR - 1050082 Printed circuit board base housing, nominal section: 1.5 mm², color: black, nominal current: 8 A, nominal voltage (III/2): 160 V, contact surface: Gold, contact type: Male, number of potentials: 5, number of rows: 1, number of poles: 5, number of connections: 5, family of articles: MC 1.5/.. -G-THR, pitch: 3.5 mm, mounting: Solder THR, pin arrangement: Linear pin arrangement, pin length [P]: 2.6 mm, number of solder pins per potential: 1, plug-in system: COMBICON MC 1.5, Plug-in face orientation: Standard, locking: without, fixing type: without, packaging type: boxed PCB headers, nominal current: 8 A, rated voltage (III/2): 160 V, nominal cross section: 1.5 mm², number of positions: 5, pitch: 3.5 mm, color: black, contact surface: Gold, mounting: THR soldering, pin layout: Linear pinning, solder pin [P]: 2.6 mm

Connectors > Printed circuit board connector
PCB Connectors (PCC)

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

Key Commercial Data

Orderkey1050082
Packing unit1 pc
Minimum order quantity50 pc
GTIN4055626663043
Weight per Piece (excluding packing)0.000 g
Custom tariff number85366930
Country of originDE (Germany)

Drawings

Diagram

Diagram
Type: MC 1,5/...-ST(F)-3,5 with MC 1,5/...-G(F)-3,5 P... THR

Diagram

Diagram
Type: MCVR 1,5/...-ST-3,5 with MC 1,5/...-G-3,5 P...THR

Back to top

Dimensions

Length [ l ]9.2 mm
Width18.89 mm
Pitch3.5 mm
Dimension a14 mm
Width [ w ]18.89 mm
Height [ h ]9.5 mm
Height6.9 mm
Length of the solder pin2.6 mm
Pin dimensions0.8 x 0.8 mm
Length9.2 mm
Back to top

General

Range of articlesMC 1,5/..-G-THR
Colorblack
Number of positions5
Back to top

Environmental Product Compliance

China RoHSEnvironmentally friendly use period: unlimited = EFUP-e
No hazardous substances above threshold values
Back to top

Classifications

eCl@ss

eCl@ss 4.027260700
eCl@ss 4.127260700
eCl@ss 5.027260700
eCl@ss 5.127260700
eCl@ss 6.027260700
eCl@ss 7.027440402
eCl@ss 8.027440402
eCl@ss 9.027440402
Back to top

ETIM

ETIM 5.0EC002637
ETIM 6.0EC002637
ETIM 7.0EC002637
Back to top

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
