View larger
Images are for illustrative purposes only. Please refer to data sheet for details

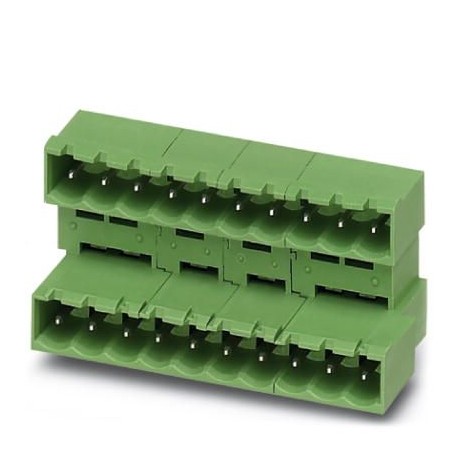

MDSTBA 2,5/ 3-G-5,08 BD:1B-3A 1005412 PHOENIX CONTACT Feed-through header
MDSTBA 2,5/ 3-G-5,08 BD:1B-3A
1005412
PHOENIX CONTACT
50 Pcs.
Feed-through header
Connectors > Printed circuit board connector
PCB Connectors (PCC)
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Dimensions
| Length [ l ] | 22.1 mm |
|---|---|
| Width | 19.78 mm |
| Pitch | 5.08 mm |
| Width [ w ] | 19.78 mm |
| Height [ h ] | 26.9 mm |
| Height | 23.7 mm |
| Length of the solder pin | 3.2 mm |
| Pin dimensions | 1 x 1 mm |
| Length | 22.1 mm |
General
| Range of articles | MDSTBA 2,5/..-G |
|---|---|
| Insulating material group | IIIa |
| Rated surge voltage (III/3) | 4 kV |
| Rated surge voltage (III/2) | 4 kV |
| Rated surge voltage (II/2) | 4 kV |
| Rated voltage (III/3) | 250 V |
| Rated voltage (III/2) | 320 V |
| Rated voltage (II/2) | 400 V |
| Connection in acc. with standard | EN-VDE |
| Nominal current IN | 10 A |
| Maximum load current | 10 A |
| Insulating material | PBT |
| Flammability rating according to UL 94 | V0 |
| Color | green |
| Number of positions | 3 |
Standards and Regulations
| Connection in acc. with standard | EN-VDE |
|---|---|
| Flammability rating according to UL 94 | V0 |
Environmental Product Compliance
| China RoHS | Environmentally friendly use period: unlimited = EFUP-e |
|---|---|
| No hazardous substances above threshold values |
