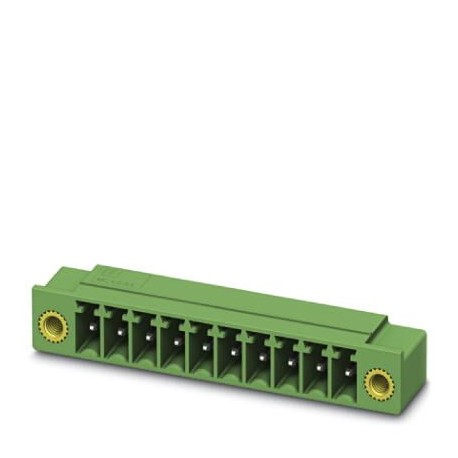

PHOENIX CONTACT MC 1,5/20-GF-3,5-LR BK MC 1,5/20-GF-3,5-LR BK 1010081 PHOENIX CONTACT Housing base printed circuit board, number of poles: 20, pitc.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

MC 1,5/20-GF-3,5-LR BK 1010081 PHOENIX CONTACT Housing base printed circuit board, number of poles: 20, pitc..

MC 1,5/20-GF-3,5-LR BK

1010081

PHOENIX CONTACT

50 Pcs.

Housing base printed circuit board, number of poles: 20, pitch: 3.5 mm, color: black, surface of contact: Tin, assembly: wave Soldering Printed circuit board base housing, nominal section: 1.5 mm², color: black, nominal current: 8 A, nominal voltage (III/2): 160 V, contact surface: Tin, contact type: Male, number of potentials: 20, number of rows: 1, number of poles: 20, number of connections: 20, article family: MC 1.5/.. -GF-LR, pitch: 3.5 mm, mounting: Wave welding, pin arrangement: Linear pin arrangement, pin length [P]: 3.4 mm, number of welding pins per potential: 1, plug-in system: COMBICON MC 1.5, Plug-in face orientation: Standard, lock: Snap-in lock, fixing type: Lock & Release air clamping (thread), packaging type: boxed packaging

Connectors > Printed circuit board connector
PCB Connectors (PCC)

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

Socket for printed circuit, nominal current: 8 A, rated voltage (III/2): 160 V, number of poles: 20, pitch: 3.5 mm, color: black, contact surface: tin, mounting: Soldering to the wave

Trade data

Order CodeOne million ten thousand eighty one
Packaging unitOne
GTINFour trillion fifty five billion six hundred twenty six million four hundred eighty two thousand five hundred seventy six
Number of the customs tariffEighty five million three hundred sixty six thousand nine hundred thirty

Dimensions

Length [ l ]9.2 mm
Width80,3 mm
Not3.5 mm
Rated66,5 mm
Width [ w ]80,3 mm
Height [ h ]10,65 mm
Mounting height7,25 mm
Length of the picot3.4 mm
Dimensions of spikes0.8 x 0.8 mm
Length9.2 mm

General

Family articlesMC 1,5/..-GF-LR
Coloursblack
Number of polesTwenty

Environmental Product Compliance

REACh SVHC
Lead 7439-92-1
China RoHSPeriod of intended use (EFUP) : 50 years
The manufacturer's declaration in the tab "Downloads" contains detailed information on hazardous substances.

Classifications

eCl@ss

eCl@ss 5.1Twenty seven million two hundred sixty thousand seven hundred
eCl@ss 6.0Twenty seven million two hundred sixty thousand seven hundred
eCl@ss 7.0Twenty seven million four hundred forty thousand four hundred two
eCl@ss 8.0Twenty seven million four hundred forty thousand four hundred two
eCl@ss 9.0Twenty seven million four hundred forty thousand four hundred two

ETIM

ETIM 5.0EC002637
ETIM 6.0EC002637
ETIM 7.0EC002637

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
