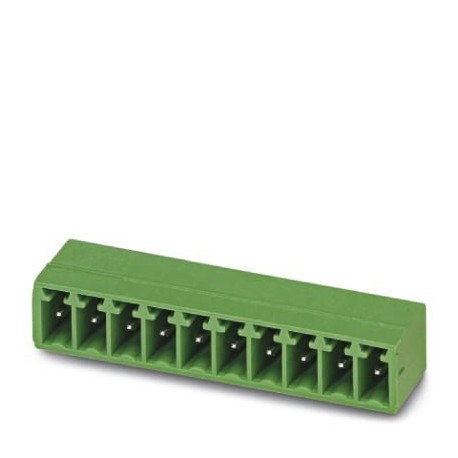

PHOENIX CONTACT MC 1,5/17-G-3,5 PIN 8,6 MC 1,5/17-G-3,5 PIN 8,6 1908046 PHOENIX CONTACT Printed-circuit board connector

View larger

Images are for illustrative purposes only. Please refer to data sheet for details

MC 1,5/17-G-3,5 PIN 8,6 1908046 PHOENIX CONTACT Printed-circuit board connector

Name: MC 1,5/17-G-3,5 PIN 8,6 1908046 PHOENIX CONTACT Printed-circuit board connector
Brand: PHOENIX CONTACT
SKU: 1908046

Reference: MC 1,5/17-G-3,5 PIN 8,6

Code: 1908046

Manufacturer: PHOENIX CONTACT

Units per package: 50 Pcs.

Description:

Printed-circuit board connector Printed circuit board base case, nominal section: 1.5 mm², color: green, nominal current: 8 A, nominal voltage (III/2): 160 V, contact surface: Tin, contact type: Male, number of potentials: 17, number of rows: 1, number of poles: 17, number of connections: 17, family of articles: MC 1.5/.. -G, pitch: 3.5 mm, mounting: Wave soldering, pin arrangement: Linear pin arrangement, pin length [P]: 8.6 mm, number of solder pins per potential: 1, plug-in system: COMBICON MC 1.5, Plug-in face orientation: Standard, lock: without, fixing type: without, packaging type: boxed

Categories:
Connectors > Printed circuit board connector
PCB Connectors (PCC)

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Guarantee, repair and return.

More info

▲

Key Commercial Data

Orderkey	1908046
Packing unit	50 pc
Minimum order quantity	50 pc
Note	Made to Order (non-returnable)
GTIN	4017918444532
Weight per Piece (excluding packing)	3.750 g
Custom tariff number	85366990
Country of origin	DE (Germany)

Dimensions

Length [ l ]	9.2 mm
Width	60.9 mm
Pitch	3.5 mm
Dimension a	56 mm
Width [ w ]	60.9 mm
Height [ h ]	15.85 mm
Height	7.25 mm
Length of the solder pin	8.6 mm
Pin dimensions	0.8 x 0.8 mm
Length	9.2 mm
