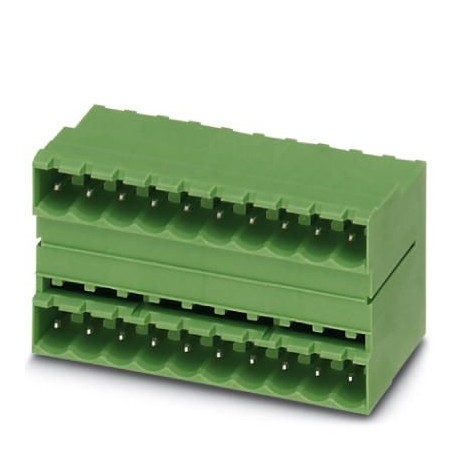

MDSTB 2,5/ 3-G1 GY CR3,6 1703847 PHOENIX CONTACT Printed-circuit board connector
MDSTB 2,5/ 3-G1 GY CR3,6
1703847
PHOENIX CONTACT
1000 Pcs.
Printed-circuit board connector
Printed circuit board base housing, nominal section: 2.5 mm², color: gray, nominal current: 10 A, nominal voltage (III/2): 320 V, contact surface: Tin, contact type: Male, number of potentials: 6, number of rows: 2, number of poles: 3, number of connections: 6, family of articles: MDSTB 2.5/.. -G1, pitch: 5 mm, mounting: Wave soldering, pin arrangement: Linear pin arrangement, pin length [P]: 3.5 mm, number of solder pins per potential: 1, plug-in system: COMBICON MSTB 2.5, Plug-in face orientation: Standard, lock: without, fixing type: without, packaging type: boxed
Connectors > Printed circuit board connector
PCB Connectors (PCC)
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Dimensions
| Length [ l ] | 22 mm |
|---|---|
| Width | 16.56 mm |
| Pitch | 5 mm |
| Dimension a | 10 mm |
| Width [ w ] | 16.56 mm |
| Height [ h ] | 32.5 mm |
| Height | 29 mm |
| Length of the solder pin | 3.5 mm |
| Pin dimensions | 1 x 1 mm |
| Length | 22 mm |
General
| Range of articles | MDSTB 2,5/..-G1 |
|---|---|
| Rated voltage (III/3) | 250 V |
| Connection in acc. with standard | EN-VDE |
| Nominal current IN | 10 A |
| Color | gray |
| Number of positions | 3 |
Environmental Product Compliance
| China RoHS | Environmentally friendly use period: unlimited = EFUP-e |
|---|---|
| No hazardous substances above threshold values |
