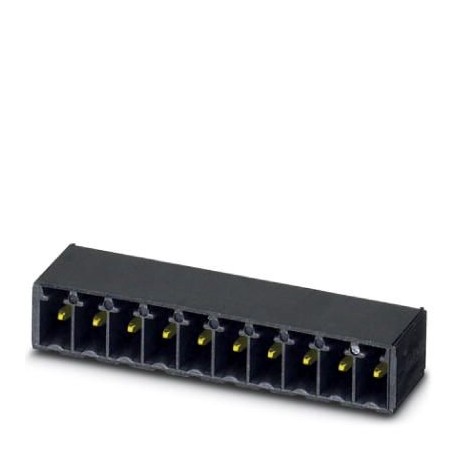

PHOENIX CONTACT MC 1,5/10-G-3,5 AU MC 1,5/10-G-3,5 AU 1860265 PHOENIX CONTACT Printed-circuit board connector View larger
Images are for illustrative purposes only. Please refer to data sheet for details

MC 1,5/10-G-3,5 AU 1860265 PHOENIX CONTACT Printed-circuit board connector

MC 1,5/10-G-3,5 AU

1860265

PHOENIX CONTACT

100 Pcs.

Printed-circuit board connector Printed circuit board base housing, nominal section: 1.5 mm², color: green, nominal current: 8 A, nominal voltage (III/2): 160 V, contact surface: Gold, contact type: Male, number of potentials: 10, number of rows: 1, number of poles: 10, number of connections: 10, family of articles: MC 1.5/.. -G, pitch: 3.5 mm, mounting: Wave soldering, pin arrangement: Linear pin arrangement, pin length [P]: 3.4 mm, number of solder pins per potential: 1, plug-in system: COMBICON MC 1.5, Plug-in face orientation: Standard, lock: without, fixing type: without, packaging type: boxed

Connectors > Printed circuit board connector
PCB Connectors (PCC)

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

Key Commercial Data

Orderkey1860265
Packing unit50 pc
NoteMade to Order (non-returnable)
GTIN4017918226985
Weight per Piece (excluding packing)2.300 g
Custom tariff number85366990
Country of originDE (Germany)

Item properties

Brief article descriptionFeed-through header
Plug-in systemMINI COMBICON
Type of contactMale connector
Range of articlesMC 1,5/..-G
Pitch3.5 mm
Number of positions10
Mounting typeWave soldering
Pin layoutLinear pinning
Lockingwithout
Number of levels1

Electrical parameters

Rated current8 A
Rated insulation voltage (III/2)160 V
Rated surge voltage (III/2)2.5 kV

Material data - contact

NoteWEEE/RoHS-compliant, free of whiskers according to IEC 60068-2-82/JEDEC JESD 201
Contact materialCu alloy
Surface characteristicsSelective coating
Metal surface contact area (top layer)Gold (0.8 - 1.4 µm Au)
Metal surface contact area (middle layer)Nickel (2 - 3 µm Ni)
Metal surface soldering area (top layer)Gold (0.8 - 1.4 µm Au)
Metal surface soldering area (middle layer)Nickel (2 - 3 µm Ni)

Material data - housing

Insulating materialPBT
Insulating material groupIIIa
CTI according to IEC 60112225
Flammability rating according to UL 94V0

Dimensions for the product

Length [ l ]9.2 mm
Width [ w ]36.4 mm
Height [ h ]10.65 mm
Pitch3.5 mm
Height (without solder pin)7.25 mm
Solder pin [P]3.4 mm
Pin dimensions0.8 x 0.8 mm
Dimension a31.5 mm

Packaging information

Type of packagingpacked in cardboard
Pieces per package50
Denomination packing unitsPcs.

Ambient conditions

Ambient temperature (storage/transport)-40 °C ... 70 °C
Ambient temperature (assembly)-5 °C ... 100 °C
Ambient temperature (operation)-40 °C

Termination and connection method

Test for conductor damage and slackeningIEC 60999-1:1999-11
Test passed

Pull-out test

Pull-out testIEC 60999-1:1999-11
Test passed
Conductor cross section / conductor type / tensile force0.14 mm² / solid / > 7 N
0.14 mm² / flexible / > 7 N
1.5 mm² / solid / > 40 N
1.5 mm² / flexible / > 40 N

Mechanical tests according to standard

Visual examinationTest passed IEC 60512-1-1:2002-02
Dimensional testTest passed IEC 60512-1-2:2002-02
Resistance of markingTest passed IEC 60068-2-70:1995-12
ResultTest passed
SpecificationIEC 60512-13-2:2006-02
No. of cycles100
Insertion strength per pos. approx.5 N
Withdraw strength per pos. approx.3 N
Polarization and codingTest passed IEC 60512-13-5:2006-02
ResultTest passed
SpecificationIEC 60512-15-1:2008-05
Test force per pos.20 N

Air clearances and creepage distances

Insulating material groupIIIa
Voltage160 V
Rated insulation voltage (III/3)160 V
Rated insulation voltage (III/2)160 V
Rated insulation voltage (II/2)250 V
Rated surge voltage (III/3)2.5 kV
Rated surge voltage (III/2)2.5 kV
Rated surge voltage (II/2)2.5 kV

Mechanical tests (A)

Insertion strength per pos. approx.5 N
Withdraw strength per pos. approx.3 N
Polarization when inserted requirement >20 NTest passed
Contact holder in insert requirements >20 NTest passed

Durability tests (B)

SpecificationIEC 60512-9-1:2010-03
Contact resistance R11 mΩ
Insertion/withdrawal cycles100
Contact resistance R21 mΩ
Impulse withstand voltage at sea level2.95 kV
Power-frequency withstand voltage1.39 kV
Insulation resistance, neighboring positions> 1 GΩ

Climatic tests (D)

SpecificationISO 6988:1985-02
Cold stress-40 °C/2 h
Thermal stress100 °C/168 h
Corrosive stress1.0 dm3SO2on 300 dm3/40 °C/3 cycles
Impulse withstand voltage at sea level2.95 kV
Power-frequency withstand voltage1.39 kV

Environmental and durability tests (E)

SpecificationIEC 61984:2008-10
Result, degree of protection, IP codeFinger safety with IP20 test finger

Environmental Product Compliance

China RoHSEnvironmentally friendly use period: unlimited = EFUP-e
No hazardous substances above threshold values

Classifications


ETIM for 1860265 Connectors (EC002637)
Feature Name Feature Value
Connector model (EF007495) Fixed connector
Contact type (EF001587) Pin
Number of poles (EF001391) 10
Number of plug-in contact rows (EF006935) 1
Modular spacing contacts (EF007326) 3.5 mm
Modular spacing connections (EF006827) 3.5 mm
Rated current In (EF008250) 8 A
Rated voltage (EF000228) 160 V
Rated surge voltage (EF002993) 2.5 kV
Over voltage category (EF006785) III
Pollution degree (EF006786) 2
Material of contact surface (EF004020) Gold
Type of electric connection (EF003961) Other
Diameter connection pin (EF006823) 1.2 mm
Length pin (EF006825) 3.4 mm
Material insulation body (EF007543) Other
Housing colour (EF000136) Green
Inflammability class of insulation material according to UL94 (EF002521) V0
Operating temperature (EF002393) -40 °C
Type of fastening (EF002442) Other
Type of banding (EF007011) Carton (for SMD)
