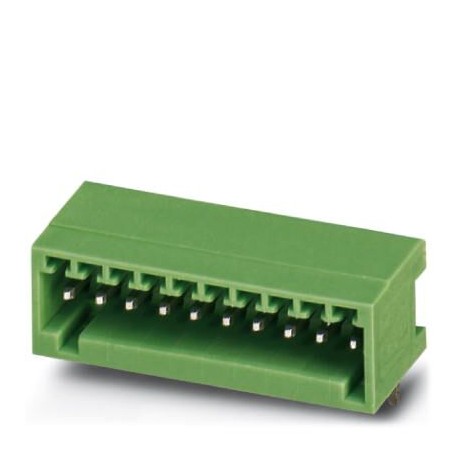

PHOENIX CONTACT MC 0,5/ 4-G-2,5 RD MC 0,5/ 4-G-2,5 RD 1028198 PHOENIX CONTACT Feed-through header MC 0,5/ 4-G-2,5 RD 1028198 View larger
Images are for illustrative purposes only. Please refer to data sheet for details

MC 0,5/ 4-G-2,5 RD 1028198 PHOENIX CONTACT Feed-through header MC 0,5/ 4-G-2,5 RD 1028198

MC 0,5/ 4-G-2,5 RD

1028198

PHOENIX CONTACT

50 Pcs.

Feed-through header - MC 0,5/ 4-G-2,5 RD - 1028198 Printed circuit board base housing, nominal section: 0.5 mm², color: red, nominal current: 4 A, nominal voltage (III/2): 160 V, contact surface: Tin, contact type: Male, number of potentials: 4, number of rows: 1, number of poles: 4, number of connections: 4, family of articles: MC 0.5/.. -G, pitch: 2.5 mm, mounting: Wave soldering, conductor/printed circuit board connection direction: 0 °, pin arrangement: Linear pin arrangement, pin length [P]: 3.8 mm, number of solder pins per potential: 1, plug-in system: COMBICON FK-MC 0.5, Plug-in face orientation: Standard, lock: without, fixing type: without, packaging type: Boxed Packaging

Connectors > Printed circuit board connector
PCB Connectors (PCC)

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

PCB headers, nominal current: 4 A, rated voltage (III/2): 160 V, number of positions: 4, pitch: 2.5 mm, color: red, contact surface: Tin, mounting: Wave soldering

Key Commercial Data

Orderkey1028198
Packing unit1
GTIN4055626524467
Custom tariff number85366930

Dimensions

Length [ l ]10.1 mm
Width11.9 mm
Pitch2.5 mm
Dimension a7.5 mm
Width [ w ]11.9 mm
Height [ h ]11.9 mm
Height8.1 mm
Length of the solder pin3.8 mm
Pin dimensions0.8 x 0.8 mm
Length10.1 mm

General

Range of articlesMC 0,5/..-G
Colorred
Number of positions4

Environmental Product Compliance

China RoHSEnvironmentally friendly use period: unlimited = EFUP-e
No hazardous substances above threshold values

Classifications

eCl@ss

eCl@ss 5.127260700
eCl@ss 6.027260700
eCl@ss 7.027440402
eCl@ss 8.027440402
eCl@ss 9.027440402

ETIM

ETIM 5.0EC002637
ETIM 6.0EC002637
ETIM 7.0EC002637

ETIM for 1028198 Connectors (EC002637)
Feature Name Feature Value
Connector model (EF007495) Fixed connector
Contact type (EF001587) Pin
Number of poles (EF001391) 4
Number of plug-in contact rows (EF006935) 1
Modular spacing contacts (EF007326) 2.5 mm
Modular spacing connections (EF006827) 2.5 mm
Rated current In (EF008250) 4 A
Rated voltage (EF000228) 160 V
Rated surge voltage (EF002993) 2.5 kV
Over voltage category (EF006785) III
Pollution degree (EF006786) 2
Material of contact surface (EF004020) Tin
Type of electric connection (EF003961) Other
Diameter connection pin (EF006823) 1.2 mm
Length pin (EF006825) 3.8 mm
Material insulation body (EF007543) Other
Housing colour (EF000136) Red
Inflammability class of insulation material according to UL94 (EF002521) V0
Operating temperature (EF002393) -40 °C
Type of fastening (EF002442) Other
Type of banding (EF007011) Carton (for SMD)

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
