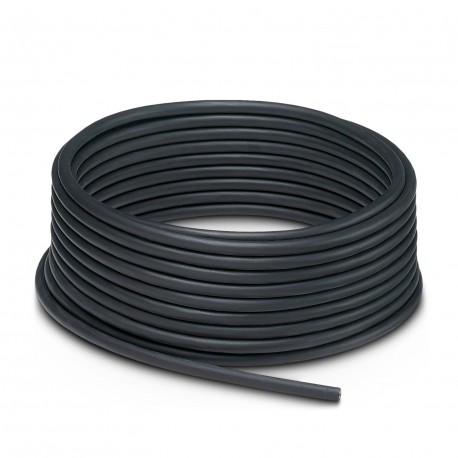

SACB- 4X0,34/2X0,75-50 PUR 1517576 PHOENIX CONTACT Master cable ring
SACB-4X0,34/2X0,75-50 PUR
1517576
PHOENIX CONTACT
1 Pcs.
Master cable ring
Main cable for sensor/actuator boxes, without PE conductor, unshielded, PUR/PVC material, 6 poles, 4 x 0.34 mm² and 2 x 0.75 mm², length: 50 m
Master cable for sensor/actuator boxes, without PE conductor, unshielded, material PUR/PVC, 6-pos., 4 x 0.34 mm2 and 2 x 0.75 mm2, length: 50 m
Cables > Power cable less 1 kV, for moving application
QUICKON Installation System (QPD)
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Technical data
Product properties
| Product type | Cable by the meter |
| Application | Distributor boxes |
| Number of positions | 6 |
| LED | no |
Electrical properties
| Nominal voltage UN | 300 V AC |
| 300 V DC |
Cable/line
| Cable length | 50 m |
| PUR/PVC black [PUR] | |
| Dimensional drawing |  |
| Cable weight | 71.7 kg/km |
| UL AWM Style | 20549 |
| Number of positions | 6 |
| Shielded | no |
| Cable type | PUR/PVC black [PUR] |
| Conductor structure signal line | 19x 0.15 mm |
| AWG signal line | 22 |
| Conductor cross section | 4x 0.34 mm² (Signal line) |
| 2x 0.75 mm² (power line) | |
| Wire diameter incl. insulation | 1.3 mm ±0.1 mm (Signal line) |
| 1.8 mm ±0.1 mm (power line) | |
| External cable diameter | 6.80 mm ±0.2 mm |
| Outer sheath, material | PUR |
| External sheath, color | black RAL 9005 |
| Conductor material | Bare Cu litz wires |
| Material wire insulation | PVC |
| Single wire, color | brown, blue, white, green, yellow, gray |
| Inner sheath thickness | ≥ 0.15 mm |
| Thickness, outer sheath | ≥ 0.38 mm |
| Overall twist | Wires twisted in layers |
| Nominal voltage, cable | 300 V |
| Test voltage | 2000 V |
| Minimum bending radius, fixed installation | 7.5 x D |
| Minimum bending radius, flexible installation | 10 x D |
| Smallest bending radius, fixed installation | 51 mm |
| Smallest bending radius, movable installation | 68 mm |
| Dynamic load capacity (bending) | Max. bending cycles: 1500000, Bending radius: 68 mm, Traversing path: 2 m, Traversing rate: 2 m/s |
| Flame resistance | DIN EN 50265 |
| Resistance to oil | according to VDE 0472 Part 803 |
| Other resistance | Highly resistant to acids, alkaline solutions and solvents |
| Special properties | Silicone-free |
| Ambient temperature (operation) | -40 °C ... 90 °C (cable, fixed installation) |
| -5 °C ... 80 °C (Cable, flexible installation) | |
| 80 °C (in acc. with UL) | |
| Feature Name | Feature Value |
|---|---|
| AWG size (EF011789) | Other |
| Nominal cross section conductor (EF000060) | 0.34 mm² |
| Conductor category (EF001632) | Class 6 = very flexible |
| Number of cores (EF001792) | 6 |
| Screen over stranding element (EF001623) | None |
| Stranding element (EF001617) | No |
| Screen over stranding (EF001624) | None |
| Material core insulation (EF000061) | Polyvinyl chloride (PVC) |
| Specification core insulation (EF011805) | Other |
| With protective conductor (EF007468) | No |
| Suspension element (EF001794) | Other |
| Material outer sheath (EF001625) | Other |
| Specification material outer sheath (EF011806) | Other |
| Colour outer sheath (EF001618) | Black |
| Screen (EF001791) | No |
| Torsion resistant (EF001687) | No |
| Low smoke according to EN IEC 61034-2 (EF003799) | No |
| Cable width approx. (EF003796) | 6.8 mm |
| Cable height approx. (EF003797) | 6.8 mm |
| Outer diameter approx. (EF003921) | 6.8 mm |
| Min. permitted bending radius, moving application with forced guidance (EF011801) | 68 mm |
| Min. permitted bending radius, moving application/free movement (EF011802) | 68 mm |
| Min. permitted bending radius, stationary application/permanent installation (EF011803) | 51 mm |
| Nominal voltage U0 (EF001790) | 300 V |
| Max. conductor temperature (EF003803) | 90 °C |
